A/C Compressor Relay Control System Check: Wiring Diagram

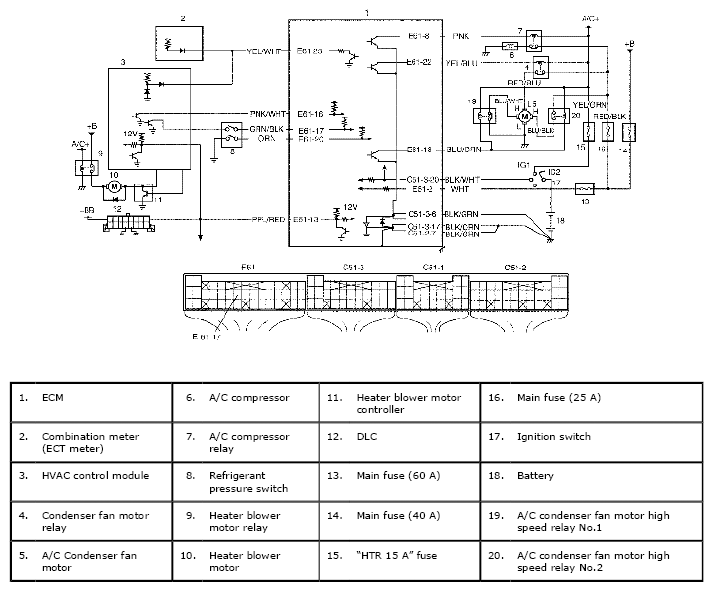

Fig 1: A/C Compressor Relay Control - Wiring Diagram
G04721071Courtesy of SUZUKI OF AMERICA CORP.
