DTC P0401 / P0402: Exhaust Gas Recirculation Flow Insufficient Detected / Excessive Detected
>>
System / Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System / Wiring Diagram

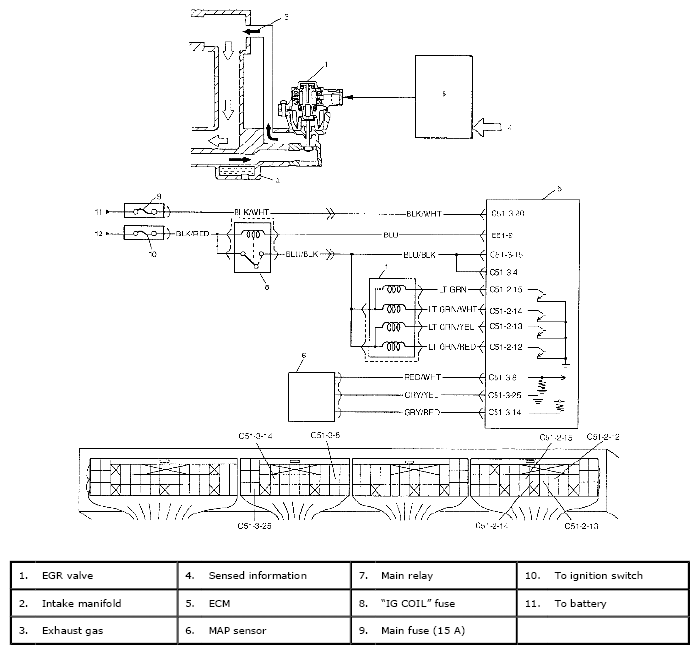

Fig 1: DTC P0401 / P0402 - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
