Suzuki
>>
2006
>>
XL-7 Base, RWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine General Information And Diagnosis
>>
General Description
>>
Electronic Control System Description
>>
Electronic Control System Flow Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Electronic Control System Flow Diagram

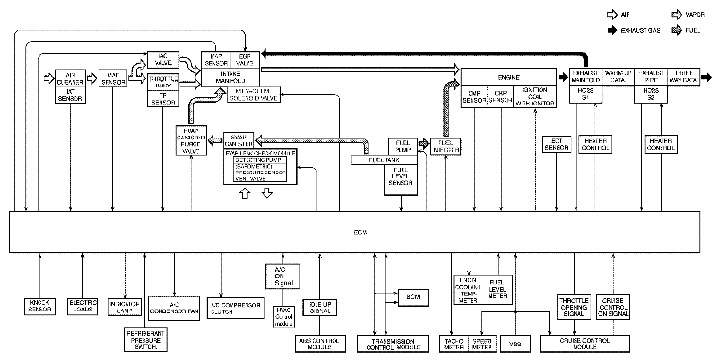

Fig 1: Electronic Control System Flow Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
