Electronic Control System Location

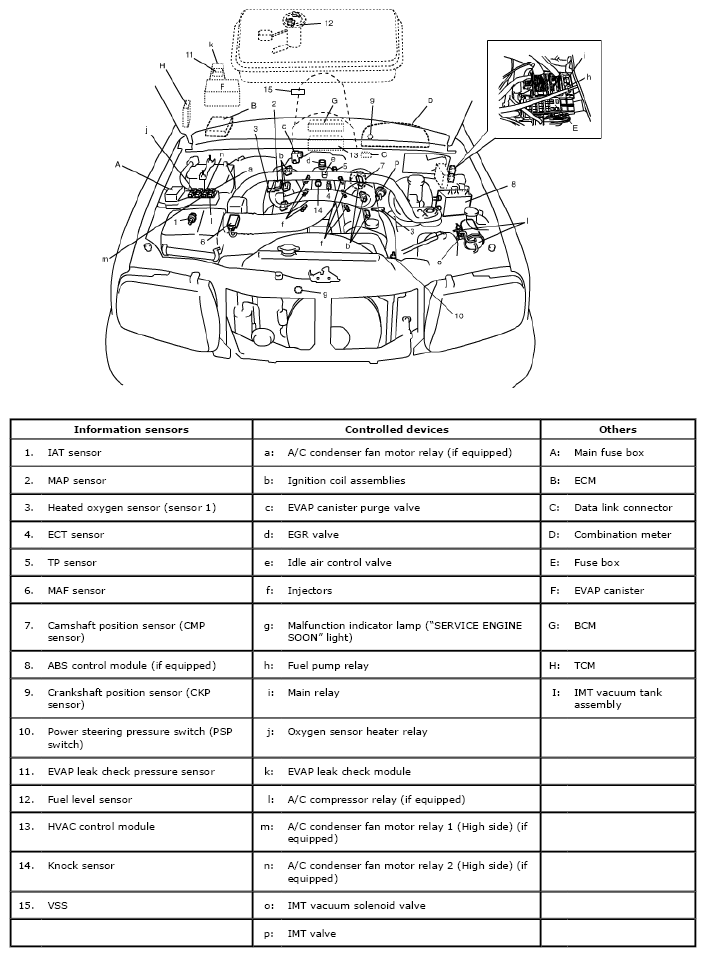

Fig 1: Identifying Electronic Control System Components Location
G04720923Courtesy of SUZUKI OF AMERICA CORP.
