Ignition System Components Location

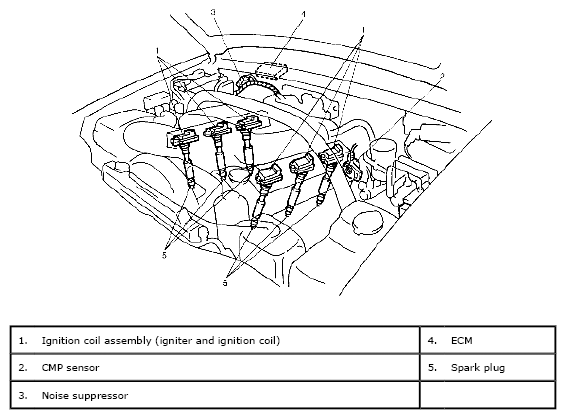

Fig 1: Identifying Ignition System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
