Ignition System Check: Reference

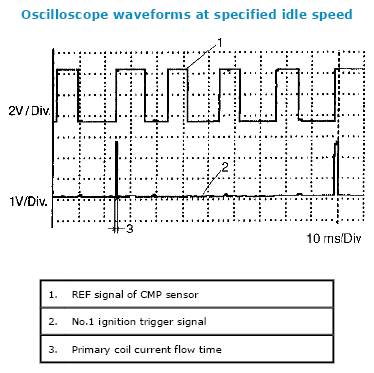

Oscilloscope waveforms of CMP sensor REF signal and No.1 ignition trigger signal are as shown in figure when connecting oscilloscope between terminal "C51-1-13" of ECM connector connected to ECM and ground, and between terminal "C51-2-28" and ground.
Oscilloscope waveforms at specified idle speed
