Engine Control Module (ECM) Removal and Installation: Removal

Disconnect battery negative cable from battery.
Disable air bag system (if equipped) referring to DISABLING AIR BAG SYSTEM .
Remove ECM cover (1) from bracket.

Fig 1: Removing ECM Cover From Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect connectors from ECM (1).
Remove ECM (1) with bracket (2).

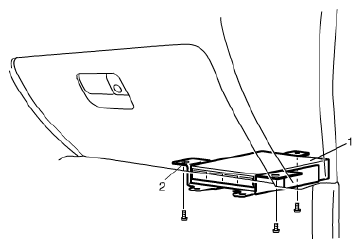

Fig 2: Identifying ECM And Bracket
Courtesy of SUZUKI OF AMERICA CORP.
