DTC P0122: Throttle Position Sensor Circuit Low Input: Wiring Diagram

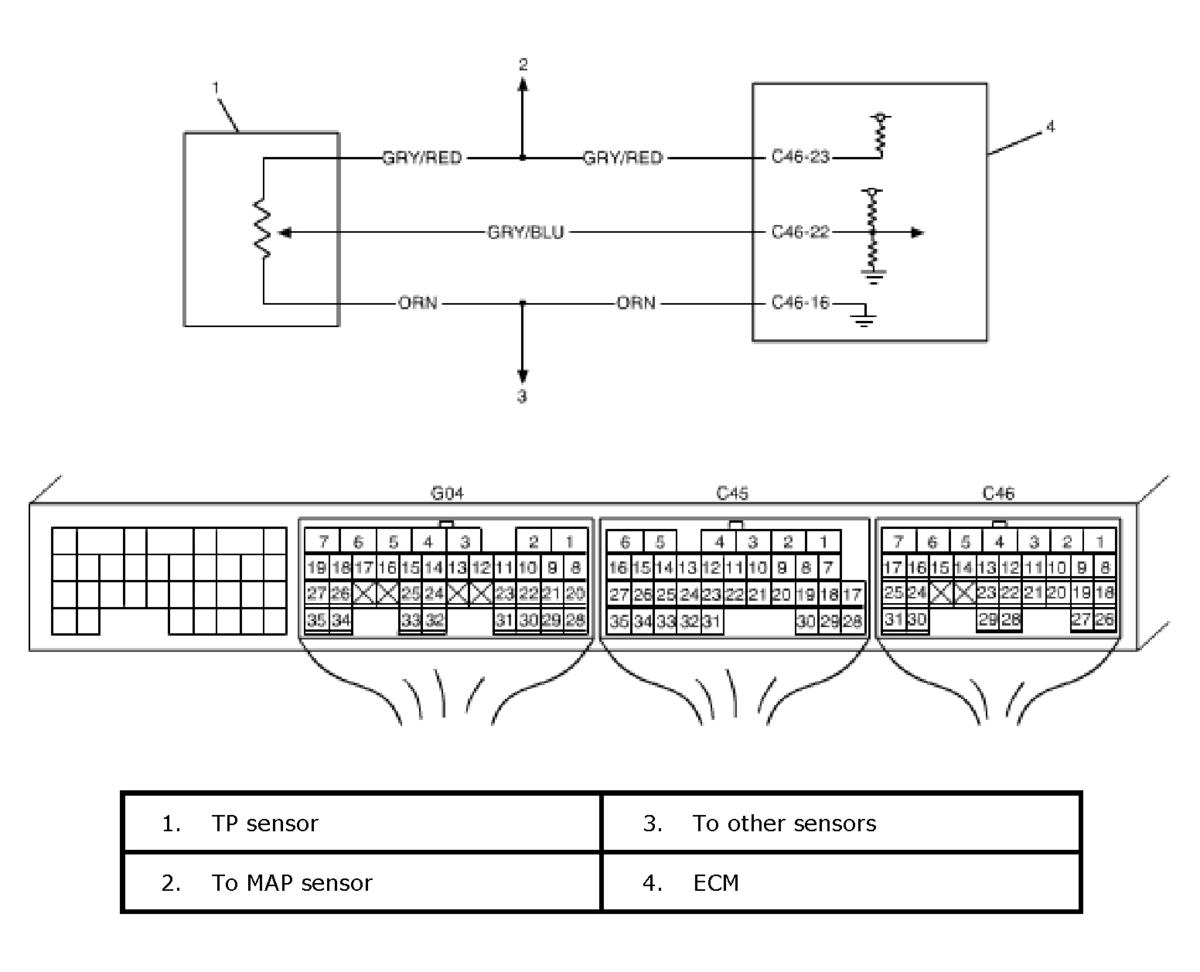

Fig 1: Throttle Position Sensor Circuit Low Input - Wiring Diagram
G04589447Courtesy of SUZUKI OF AMERICA CORP.
