System / Wiring Diagram

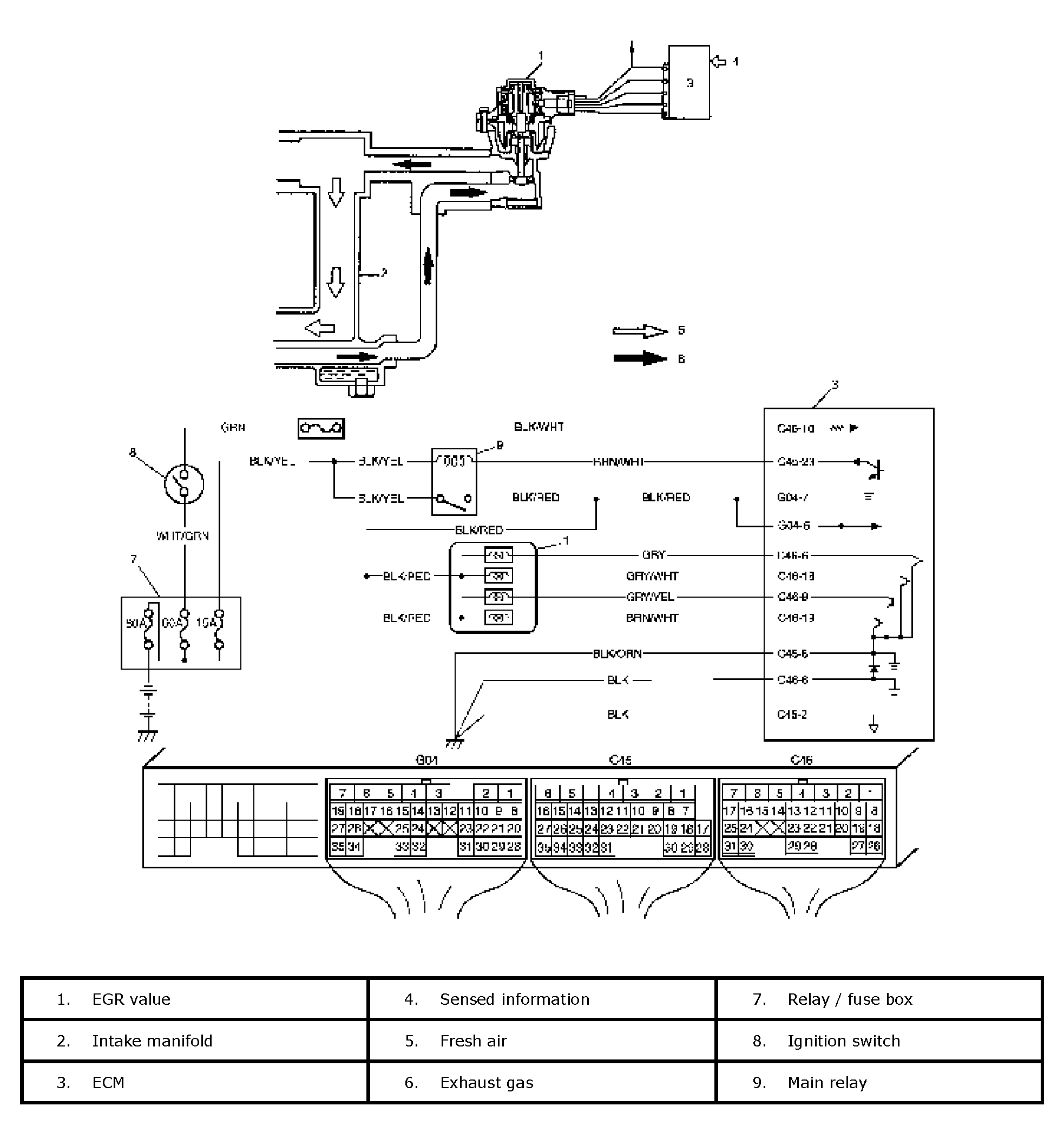

Fig 1: Exhaust Gas Recirculation Flow Insufficient / Excessive Detected - System / Wiring Diagram
G04589471Courtesy of SUZUKI OF AMERICA CORP.
