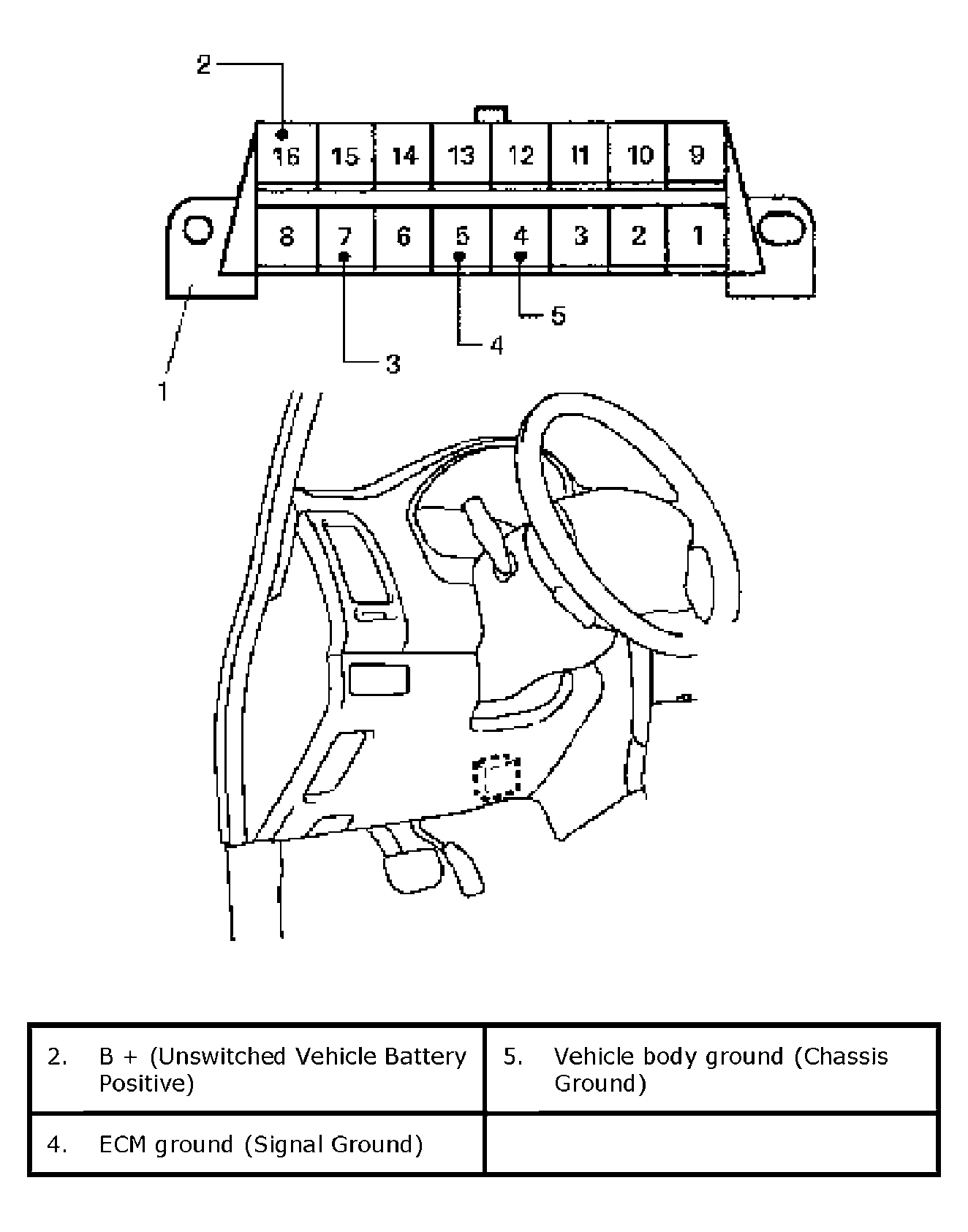

Data Link Connector (DLC)
DLC (1) is in compliance with SAE J1962 in its installation position, the shape of connector and pin assignment.
OBD-II serial data line (K line of ISO 9141) (3) is used for SUZUKI scan tool or OBD-II generic scan tool to communicate with ECM, Air bag SDM, TCM and ABS control module.
