EVAP Leak Check Module Removal and Installation (Vehicle with ORVR System): Installation
For installation, reverse removal procedure noting the following.
- Apply gasoline to O-ring of EVAP leak check module.
- Tighten EVAP leak check module bolts to specified torque.
Tightening torque

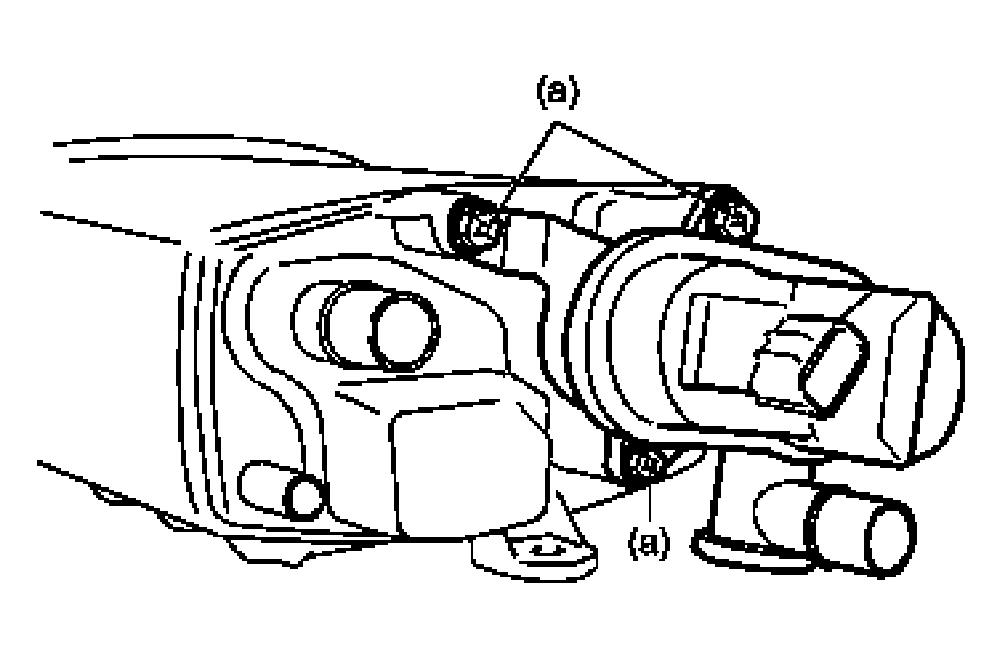

EVAP leak check module bolt a: 5.5 N.m (0.55 kg-m, 4.0 lb-ft)
- Install EVAP canister with EVAP leak check module referring to EVAP CANISTER REMOVAL AND INSTALLATION .
