Steering Lock Assembly (Ignition Switch) Removal and Installation: Installation

Position oblong hole (1) of steering shaft (2) in the center of hole (3) in column (4).
Turn ignition key to "ACC" or "ON" position and install steering lock assembly (5) onto column (4).
Now turn ignition key to "LOCK" position and pull it out.
Align hub on lock with oblong hole (1) of steering shaft (2) and rotate shaft to assure that steering shaft is locked.

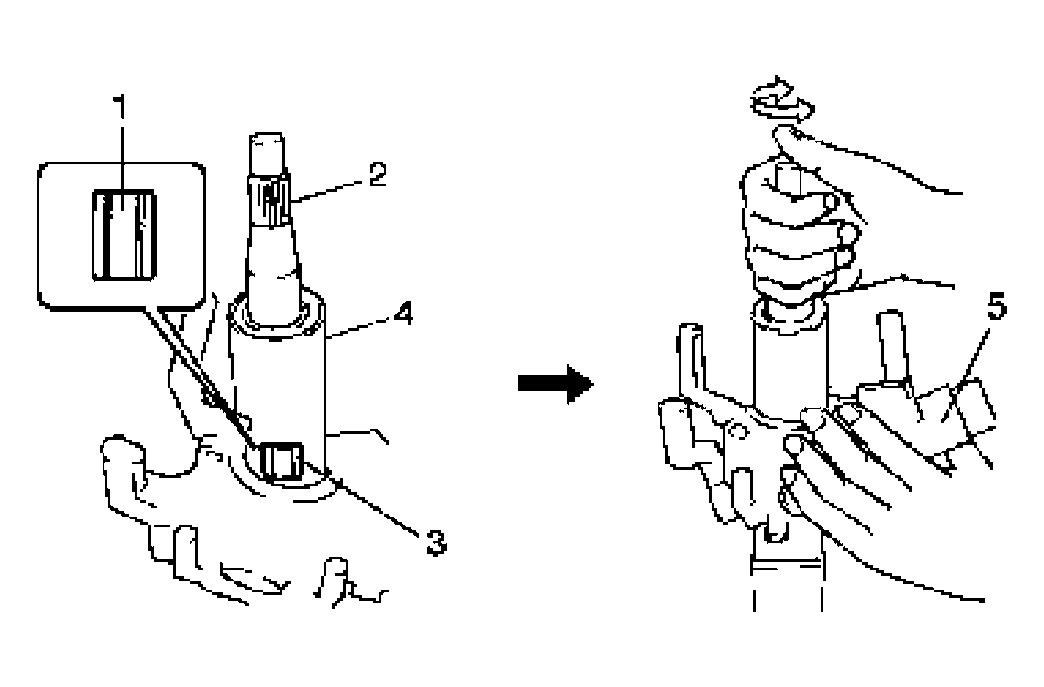

Fig 1: Aligning Hub On Lock With Oblong Hole Of Steering Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Tighten new bolts (1) until head of each bolt is broken off.
Turn ignition key to "ACC" or "ON" position and check to be sure that steering shaft (2) rotates smoothly. Also check for lock operation.

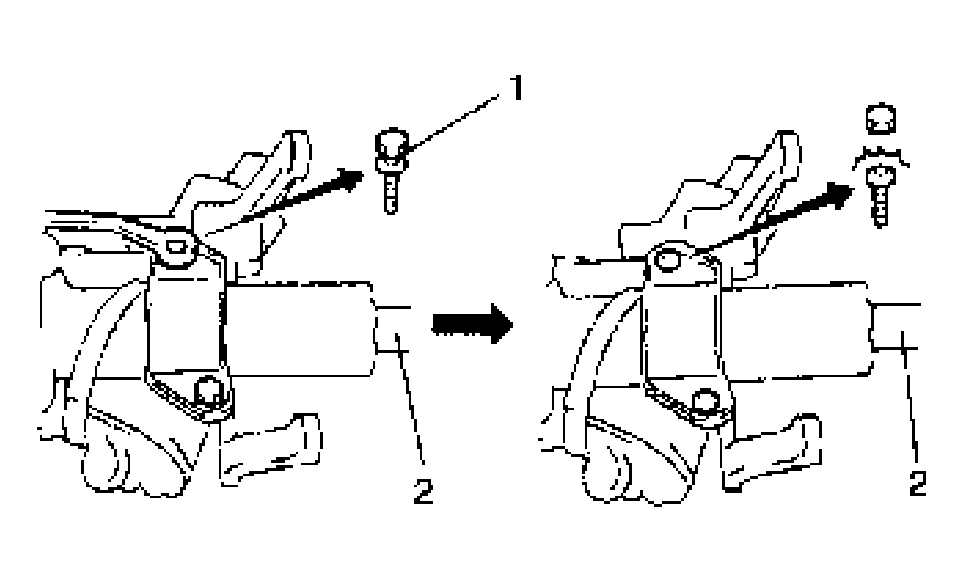

Fig 2: Tightening Steering Lock Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install steering column. Refer to STEERING COLUMN ASSEMBLY REMOVAL AND INSTALLATION .
