Starting Motor Components

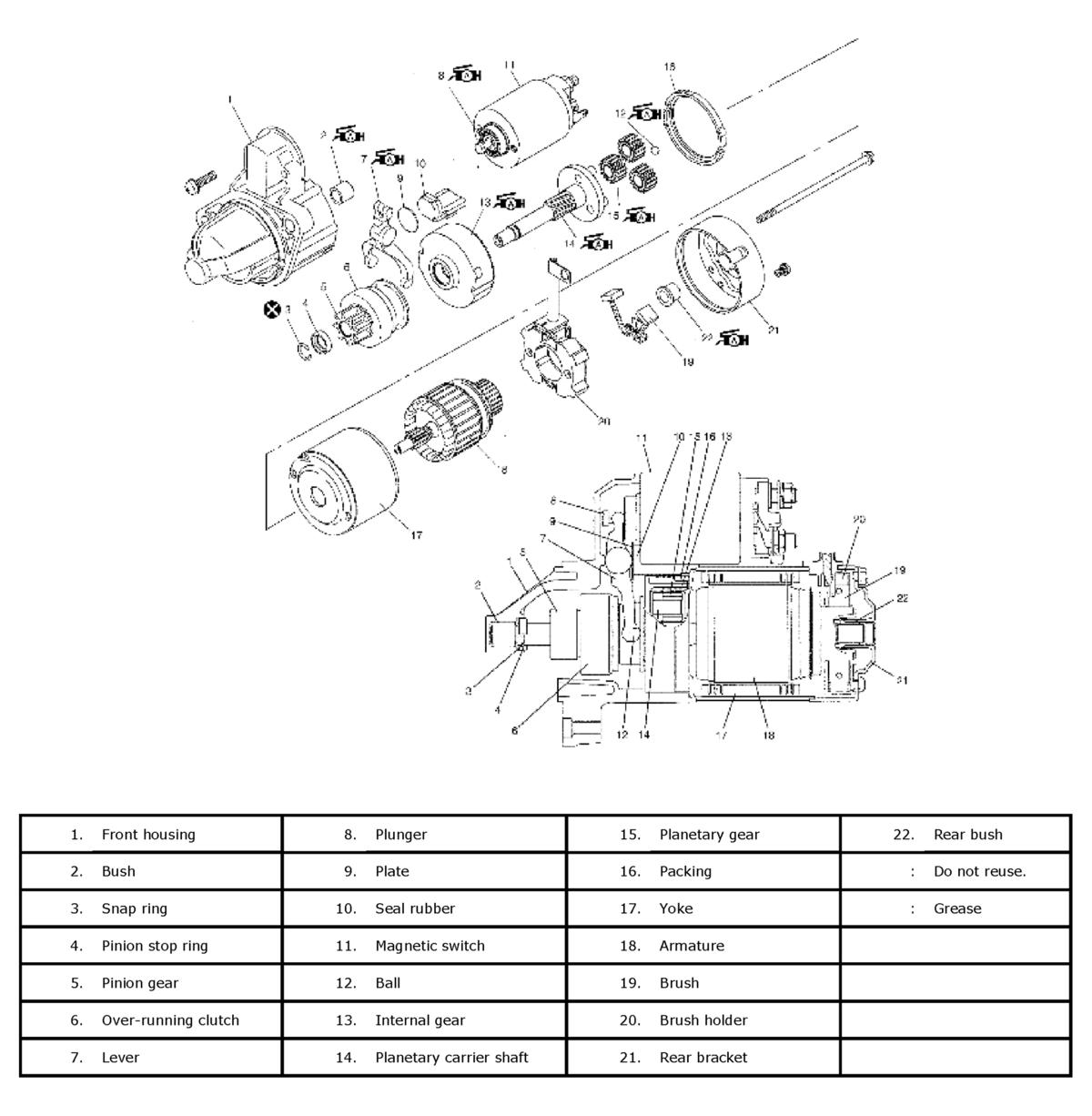

Fig 1: Identifying Starting Motor Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
