Select Cable Components

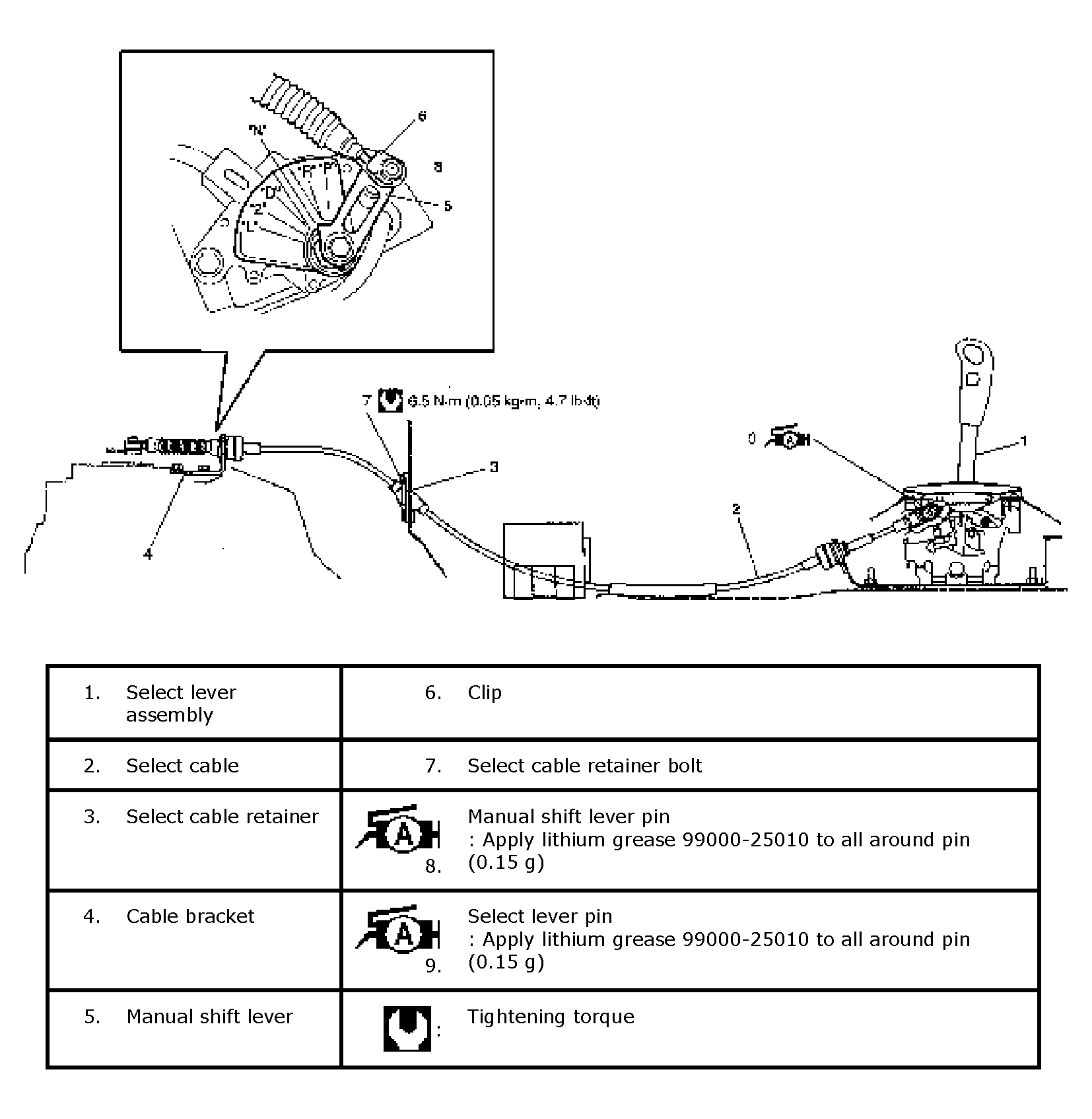

Fig 1: Identifying Select Cable Components With Tightening Torques

G04591868

Courtesy of SUZUKI OF AMERICA CORP.
