Transfer Assembly Components

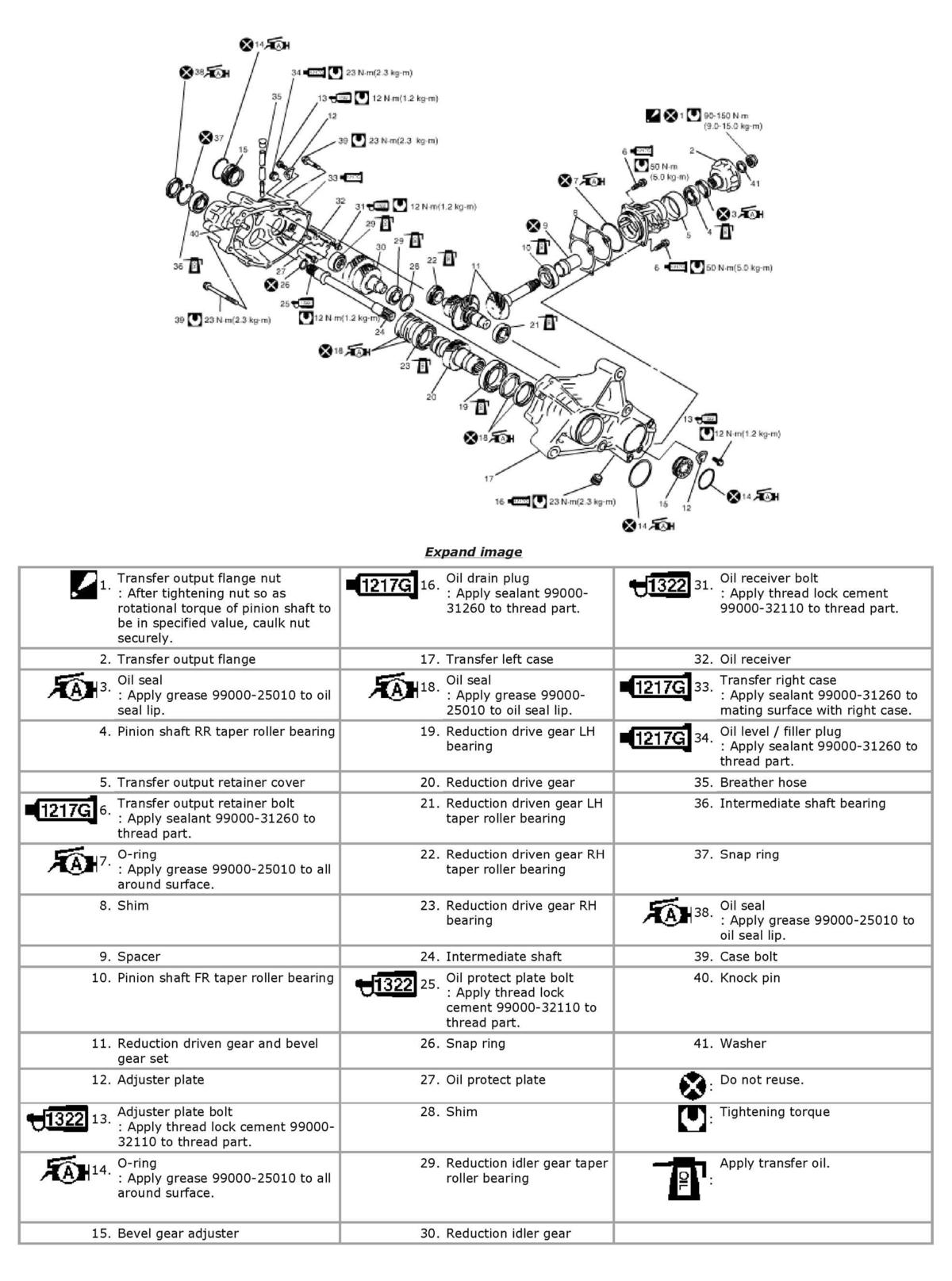

Fig 1: Identifying Transfer Assembly Components (With Tightening Torques)
G04590561Courtesy of SUZUKI OF AMERICA CORP.
