DTC P0102: Mass Air Flow Sensor Circuit Low Input: Wiring Diagram

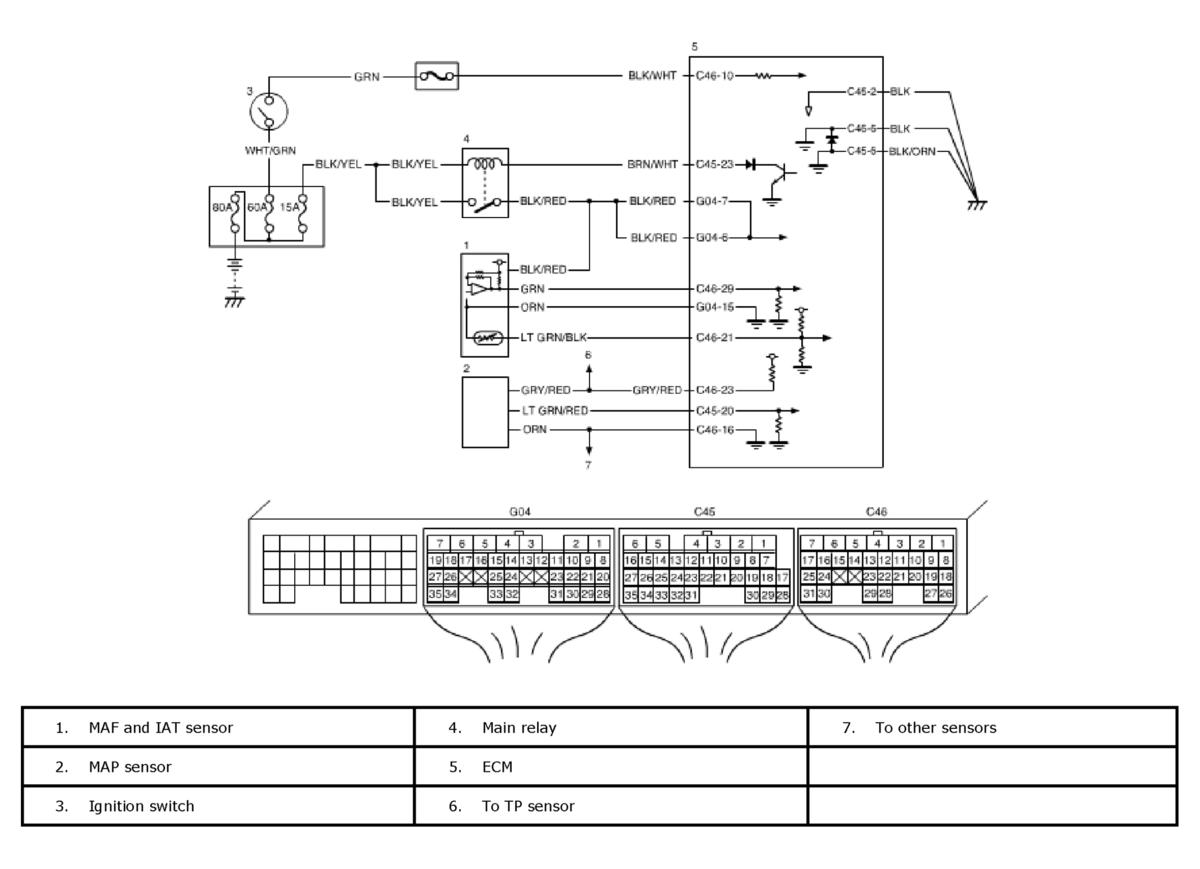

Fig 1: Mass Air Flow Sensor Circuit Low Input - Wiring Diagram
G04589426Courtesy of SUZUKI OF AMERICA CORP.
