Engine Control Module

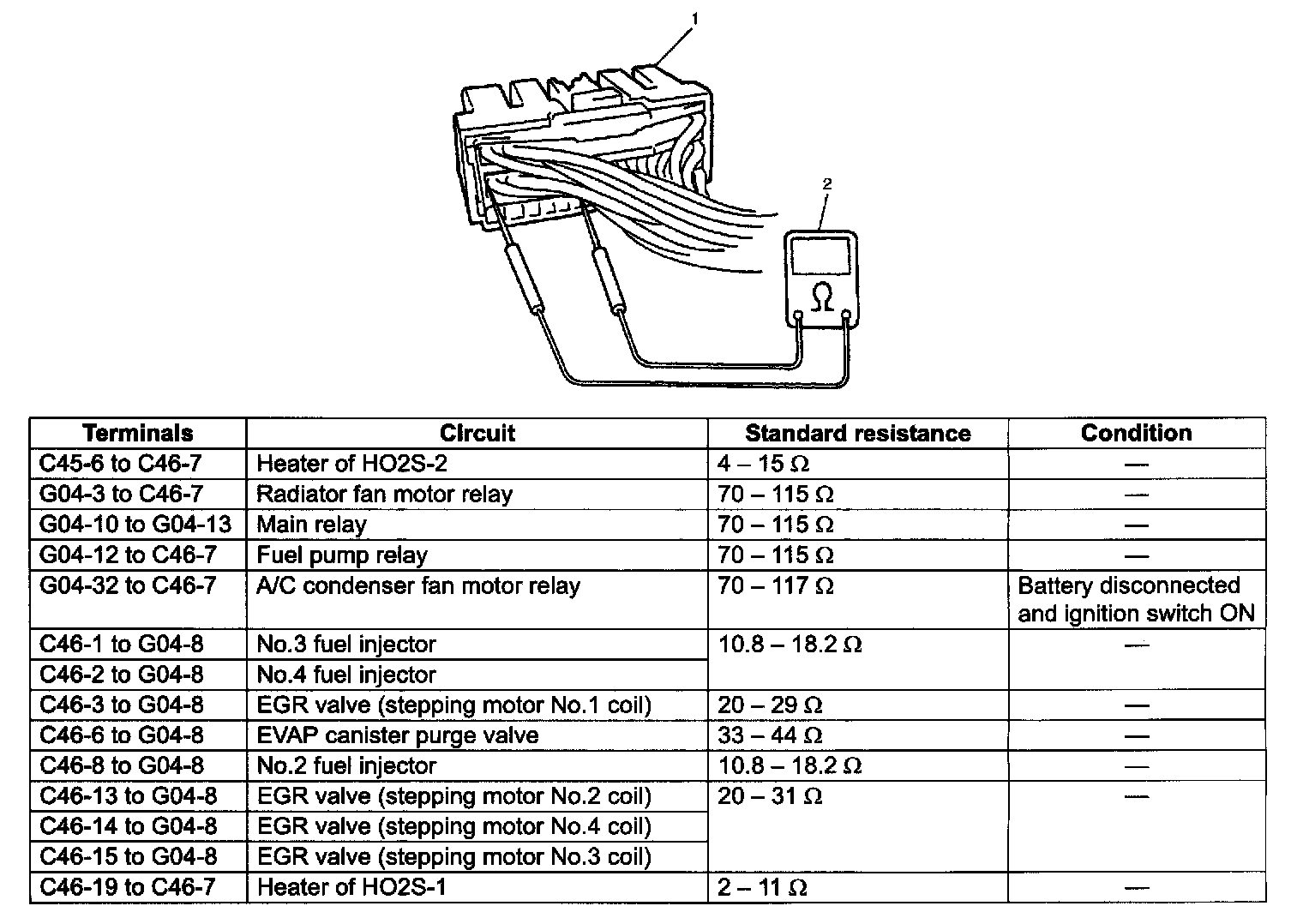

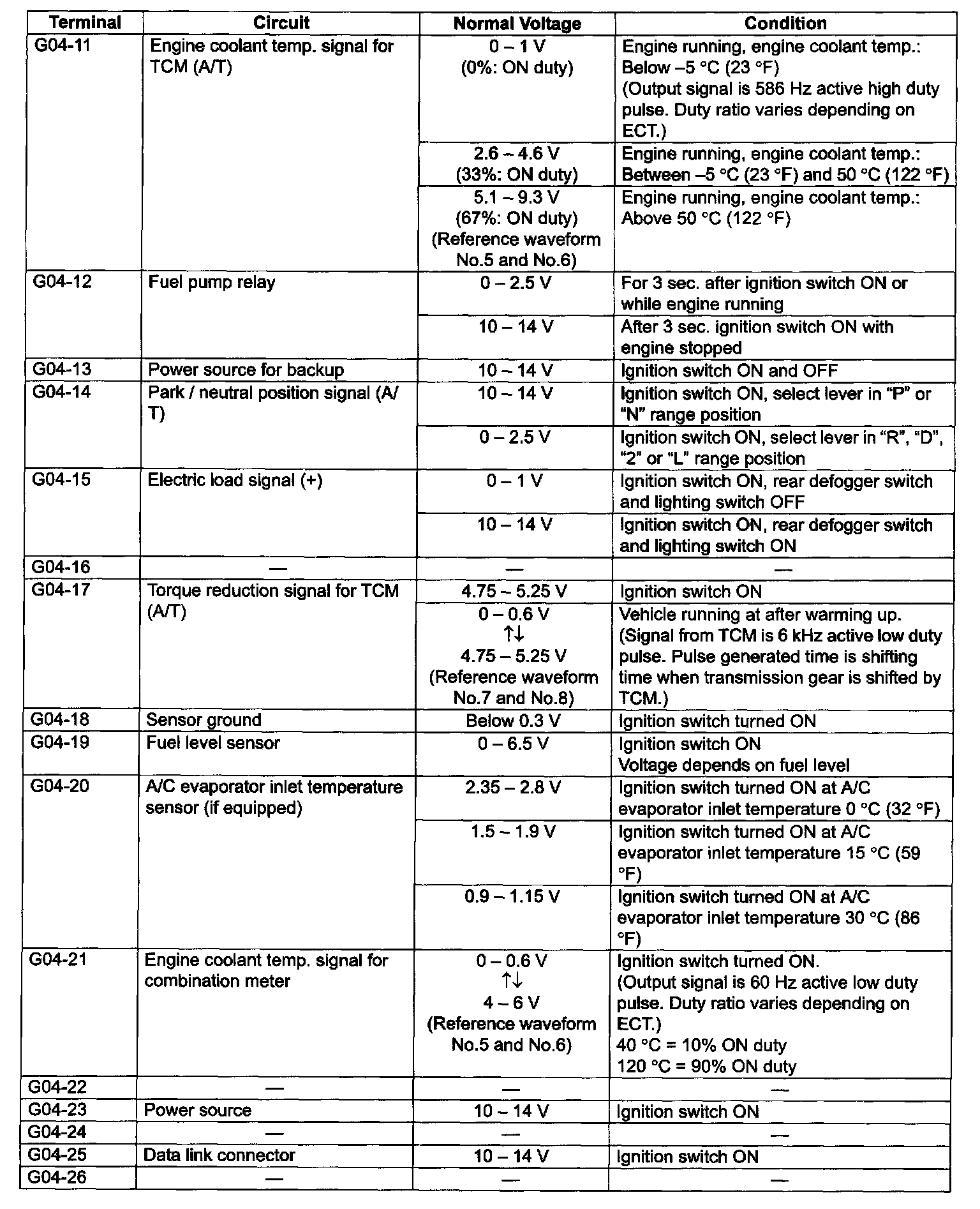

G04, C45, C46 Pinouts Part 1:

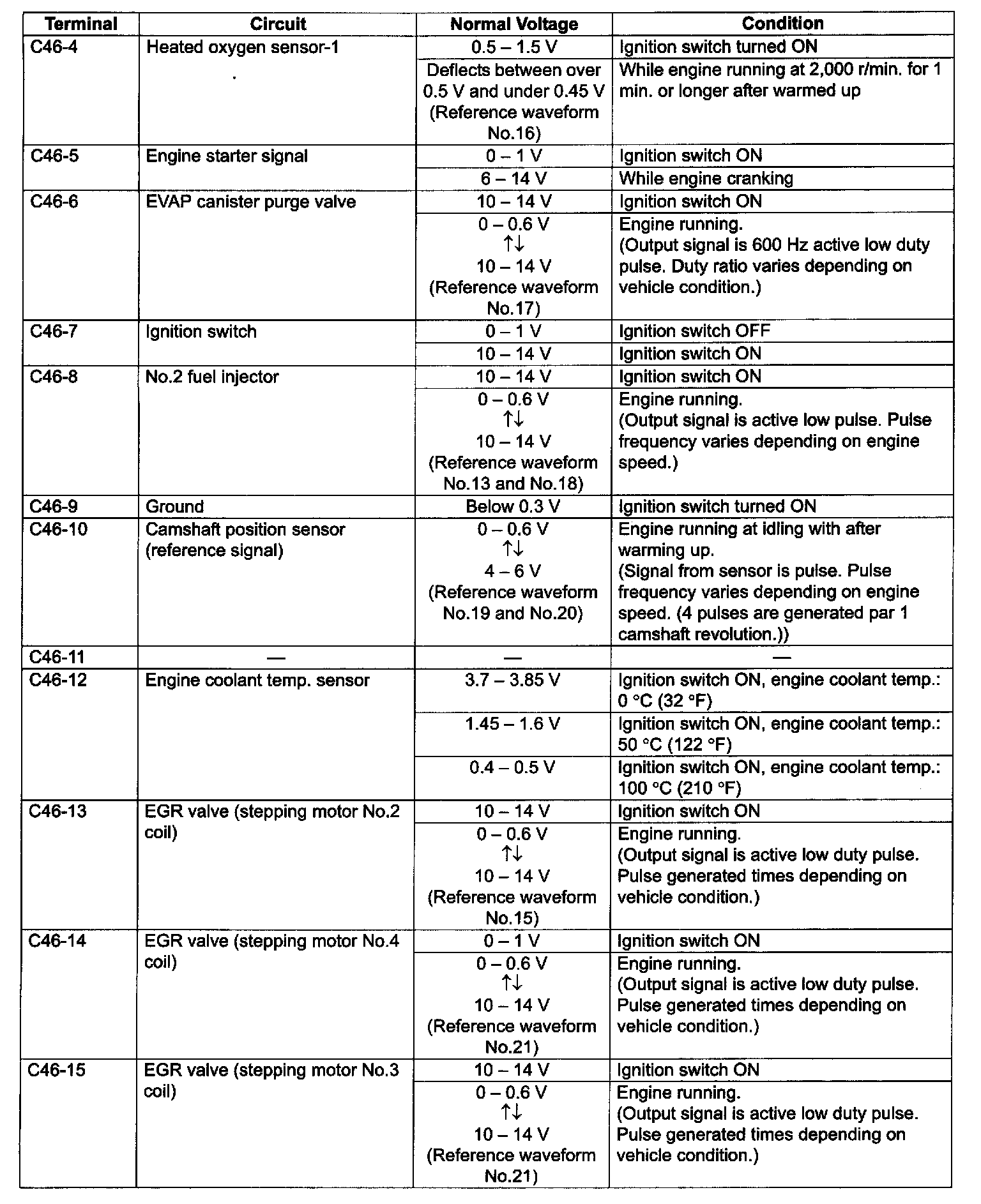

G04, C45, C46 Pinouts Part 2:

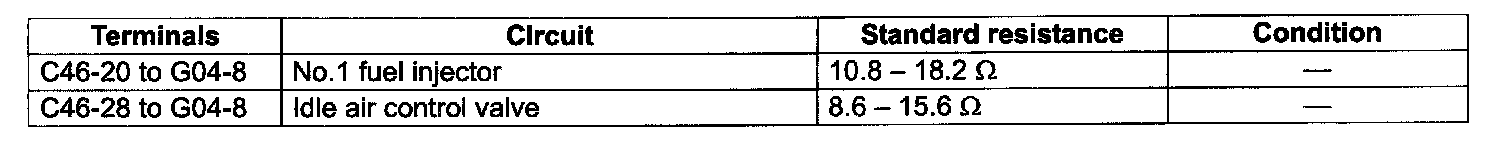

G04, C45, C46 Pinouts Part 3:

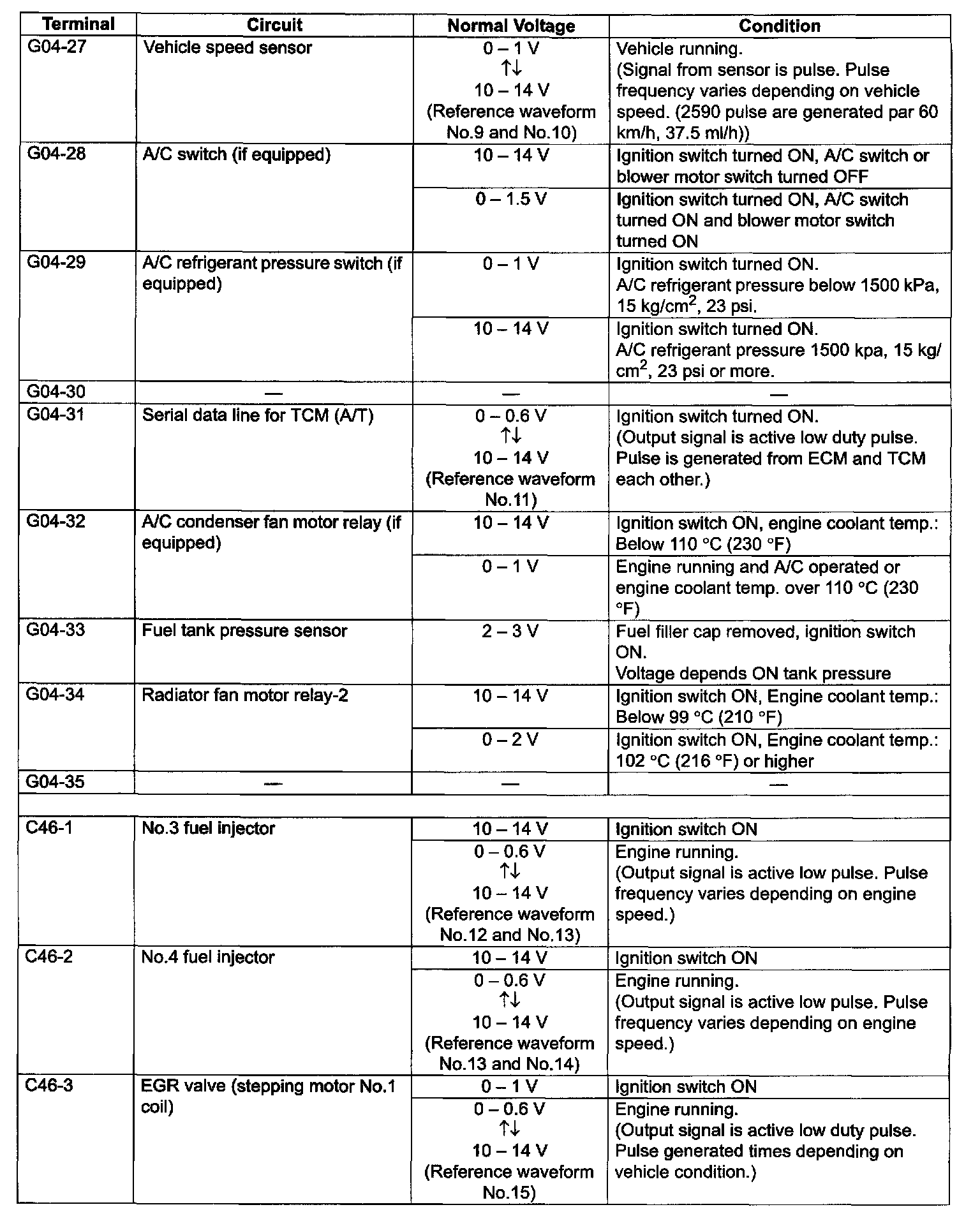

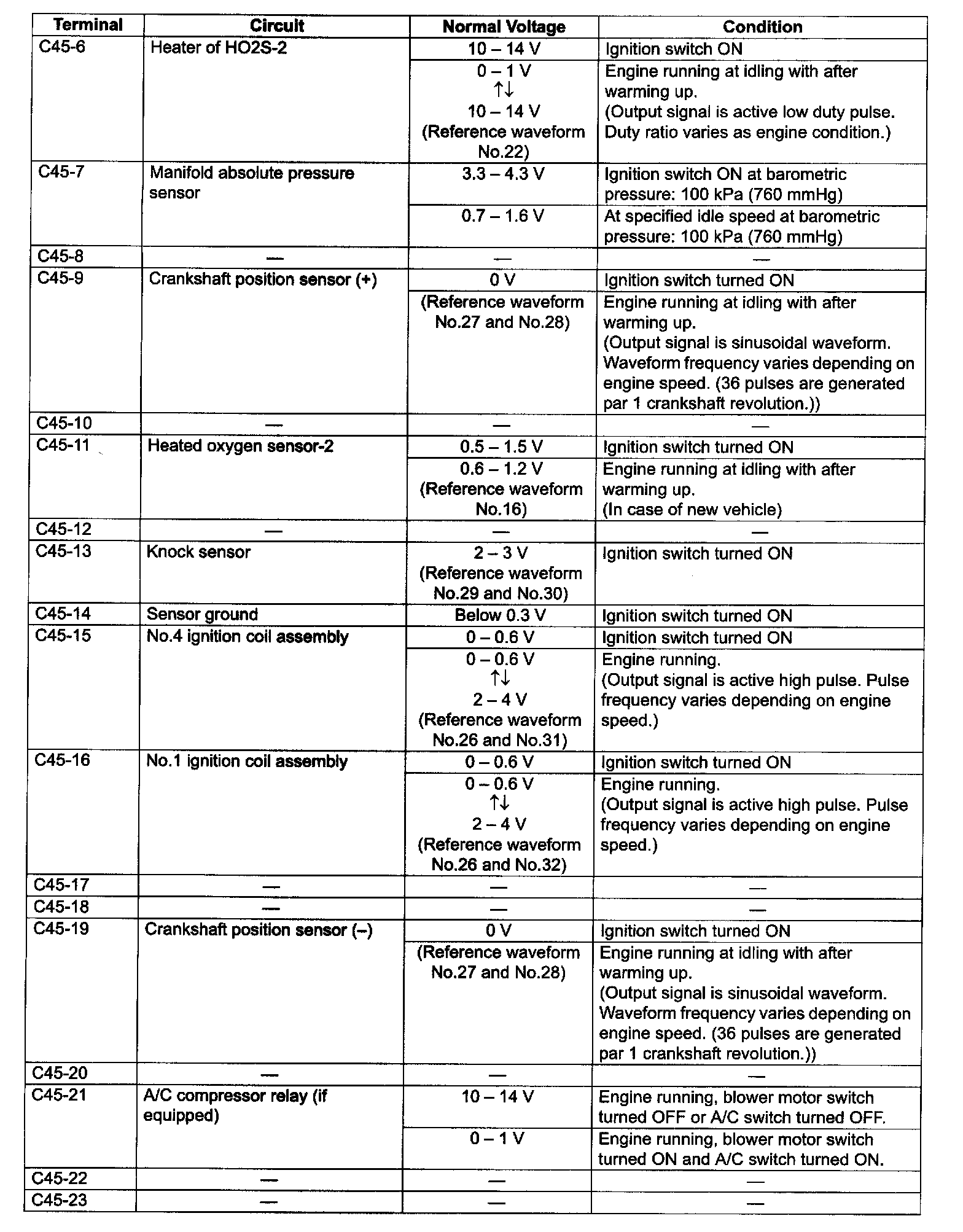

G04, C45, C46 Pinouts Part 4:

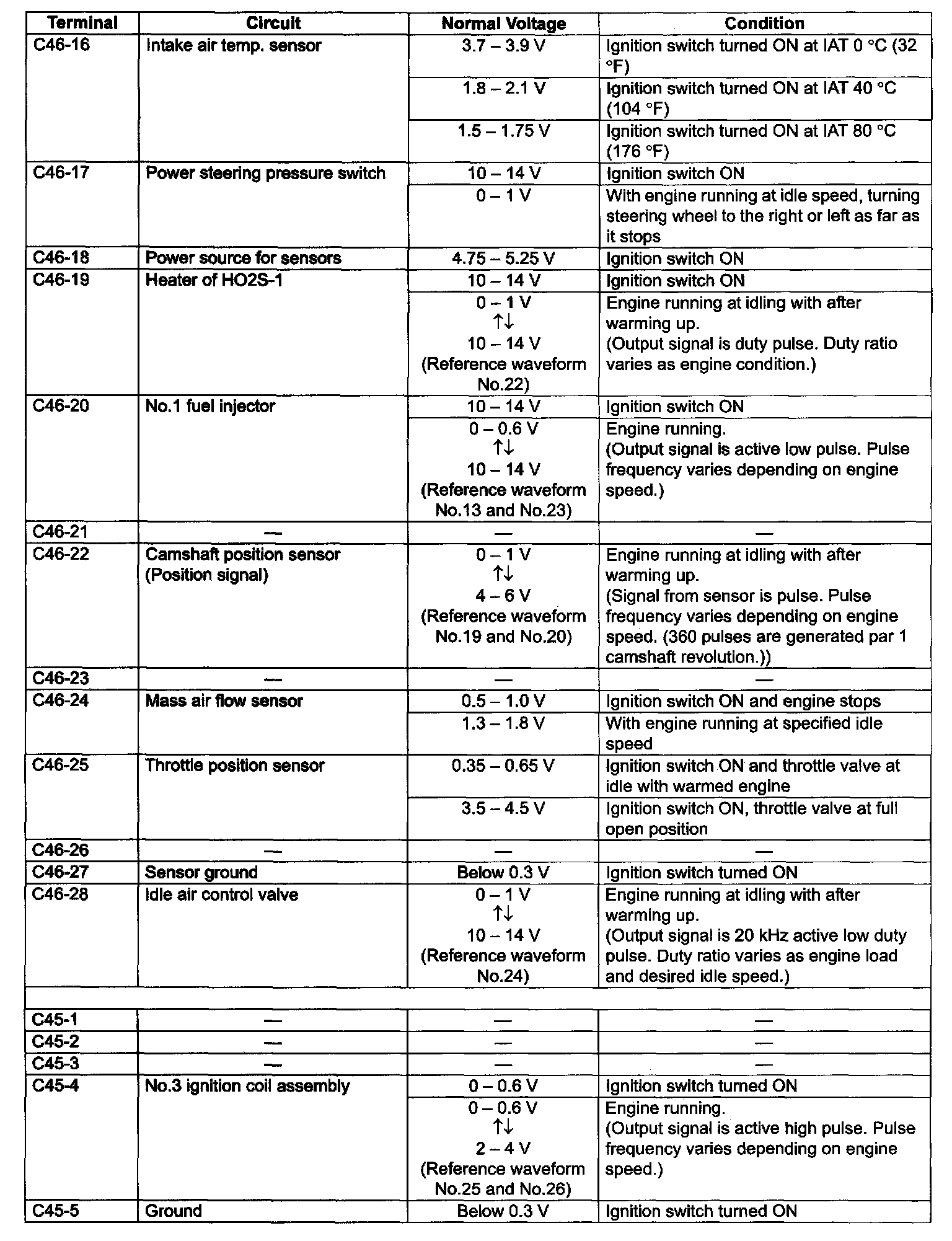

G04, C45, C46 Pinouts Part 5:

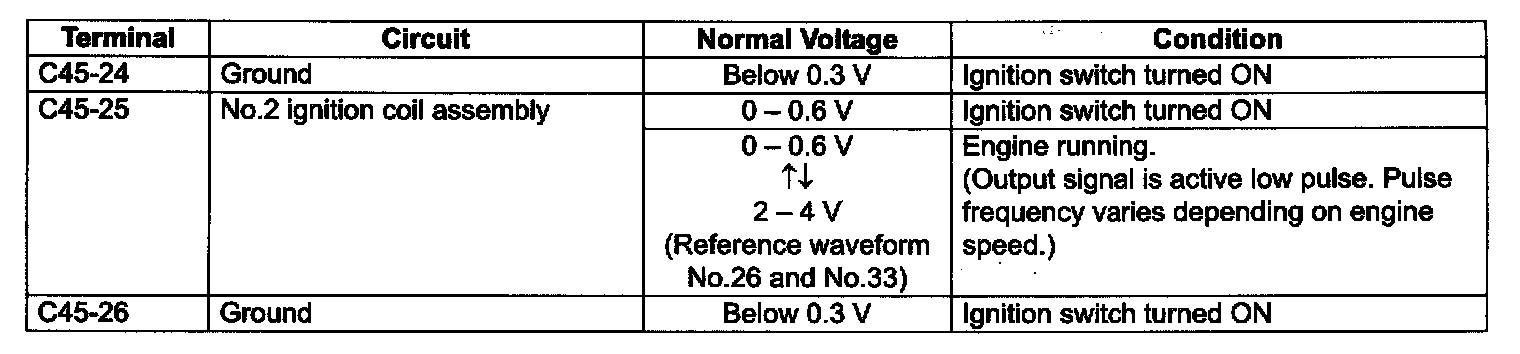

G04, C45, C46 Pinouts Part 6:

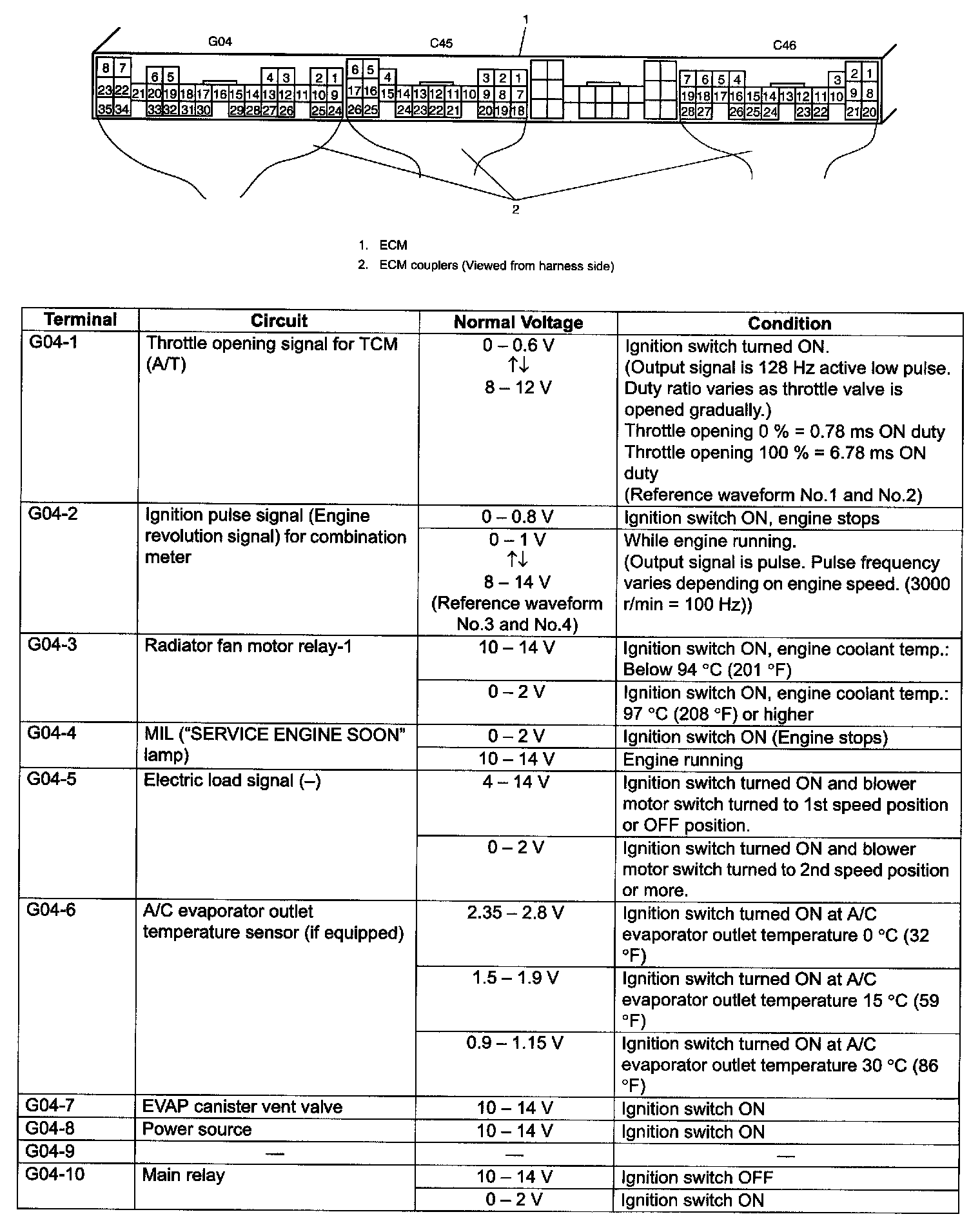

G04, C45, C46 Pinouts Part 7:
