Solar Sensor: Service and Repair

Sunload Sensor Removal and Installation

Removal

1. Disconnect negative (-) cable at battery.

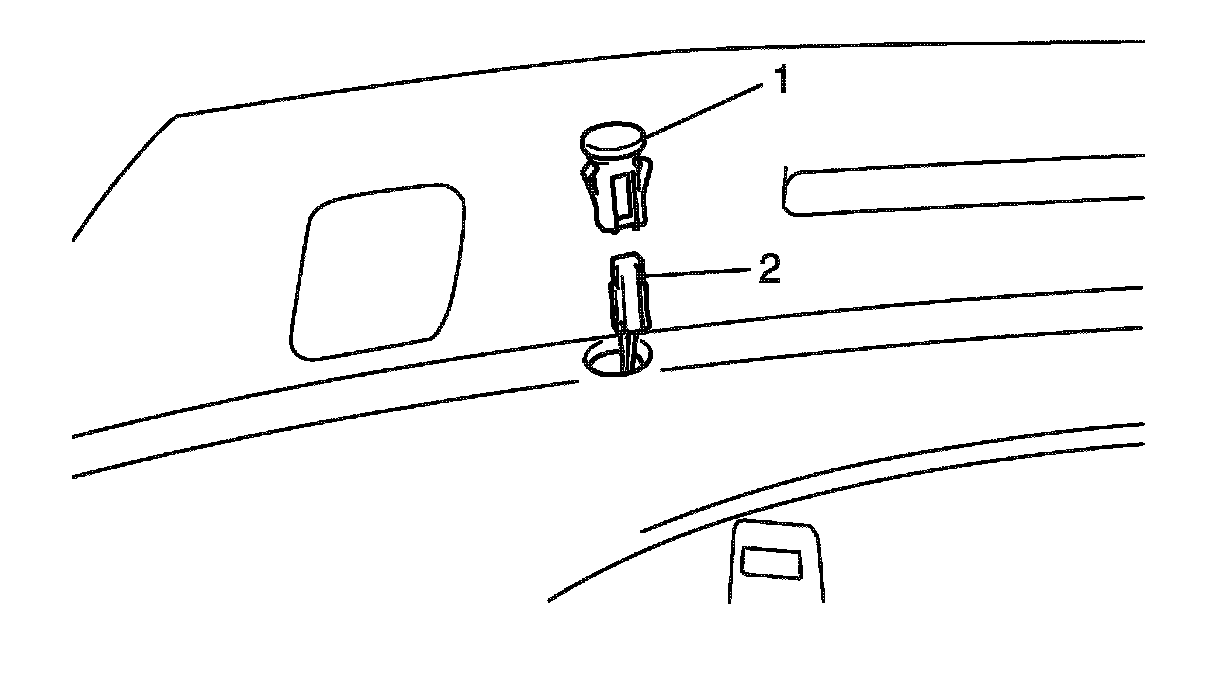

2. Remove sunload sensor (1) from instrument panel by depressing tab and pushing sensor upward from underneath.
3. Disconnect sunload sensor connector (2).

Installation
Reference: Sunload Sensor Inspection:Automatic Type

Reverse removal procedure for installation.
