Automatic Gear Shift Table (For 2WD Model)

Automatic Gear Shift Table (for 2WD Model)

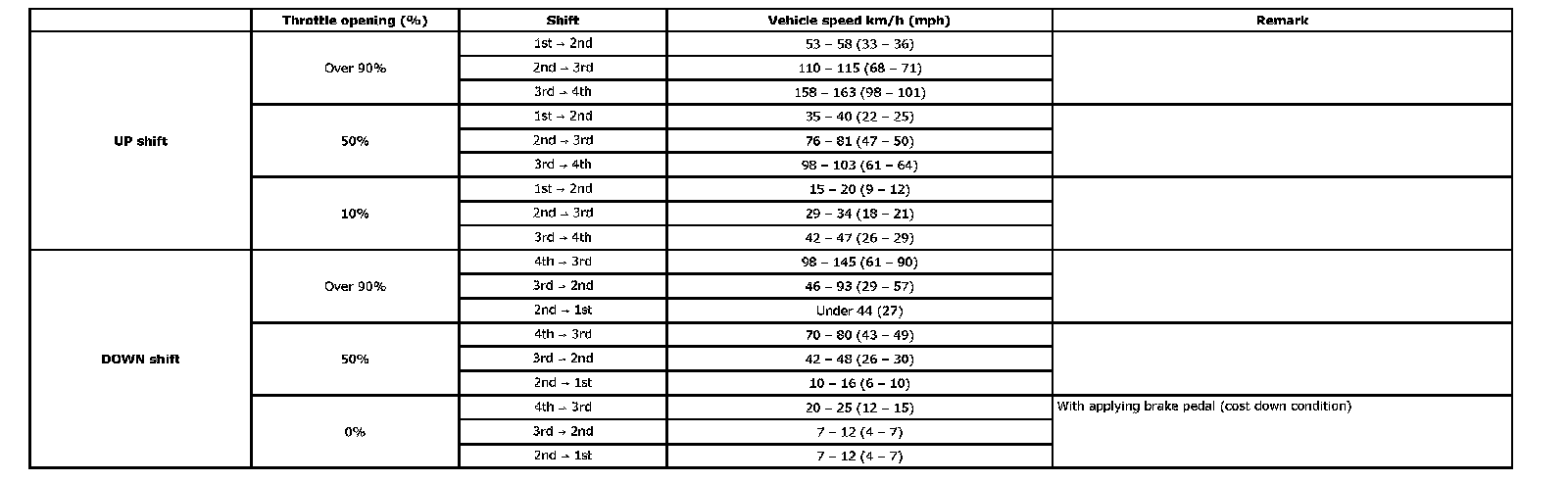

Automatic gear shift schedule is shown in the following table. Test-drive the vehicle on a flat road in the D position.

1. Shift Point in D position

2. Lock-up point in D position
