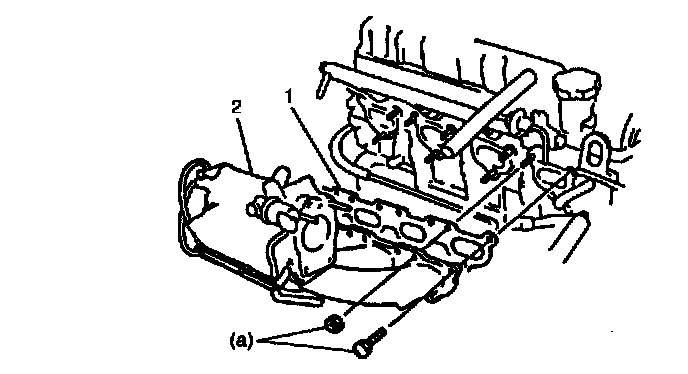

Intake Manifold





Intake manifold bolts and nuts 23 Nm (17.0 ft. lbs.)
Intake manifold rear stiffener bolts 50 Nm (36.5 ft. lbs.)
Intake manifold front stiffener bolts 25 Nm (18.0 ft. lbs.)
Throttle body bolts and nuts 23 Nm (17 ft. lbs.)
