Alternator: Service and Repair




Generator Dismounting and Remounting

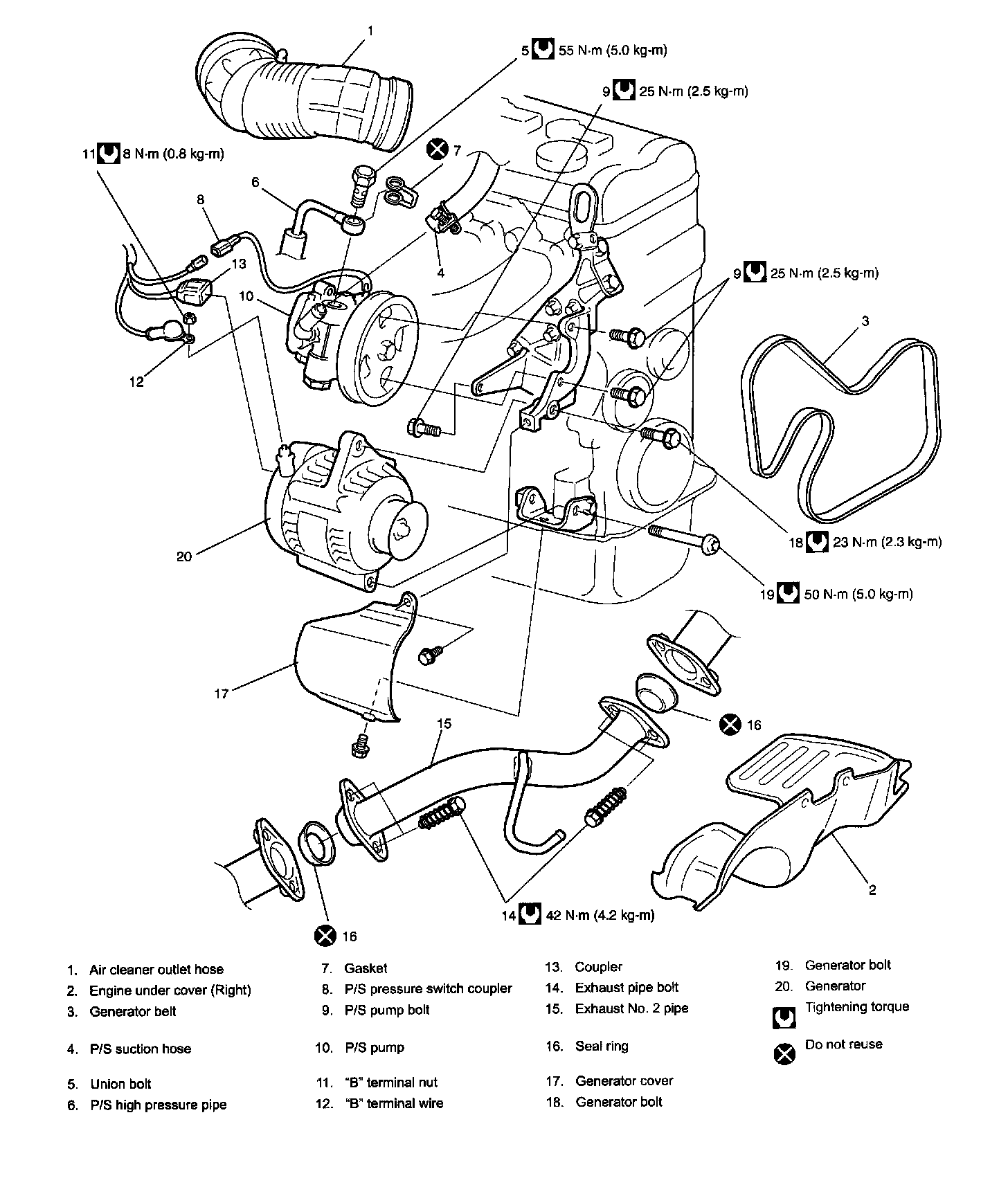

1. Disassemble in order shown in figure.
2. Assemble in reverse order of disassembly.
