Gear Shift Control Lever Rear Case Assembly Components

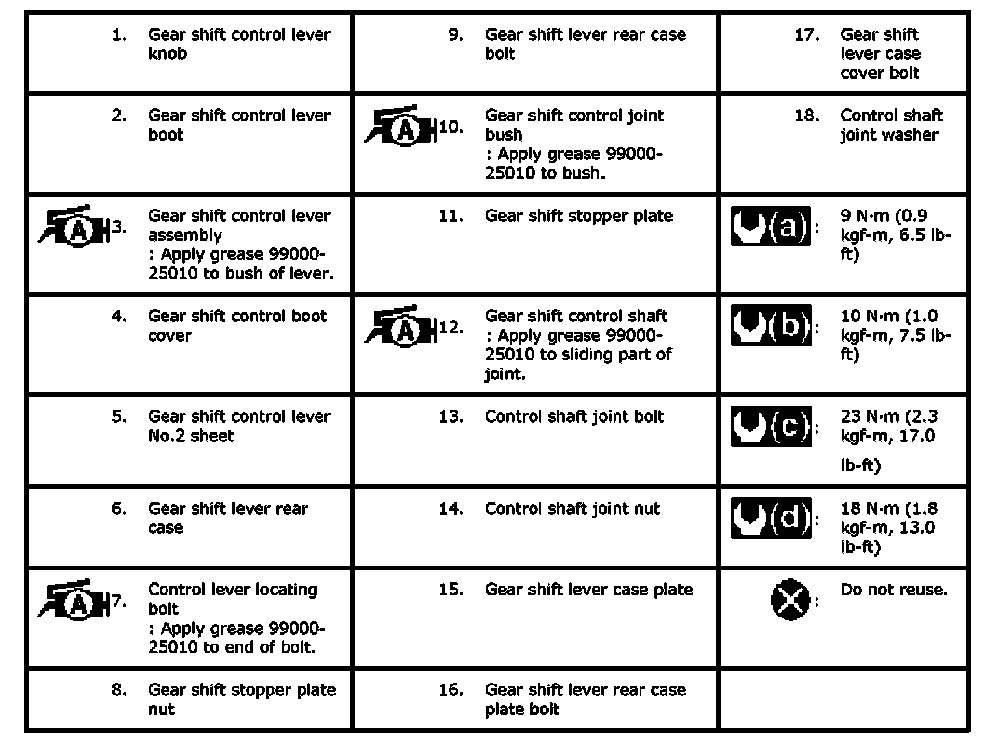

Gear Shift Control Lever Rear Case Assembly Components (part 1):

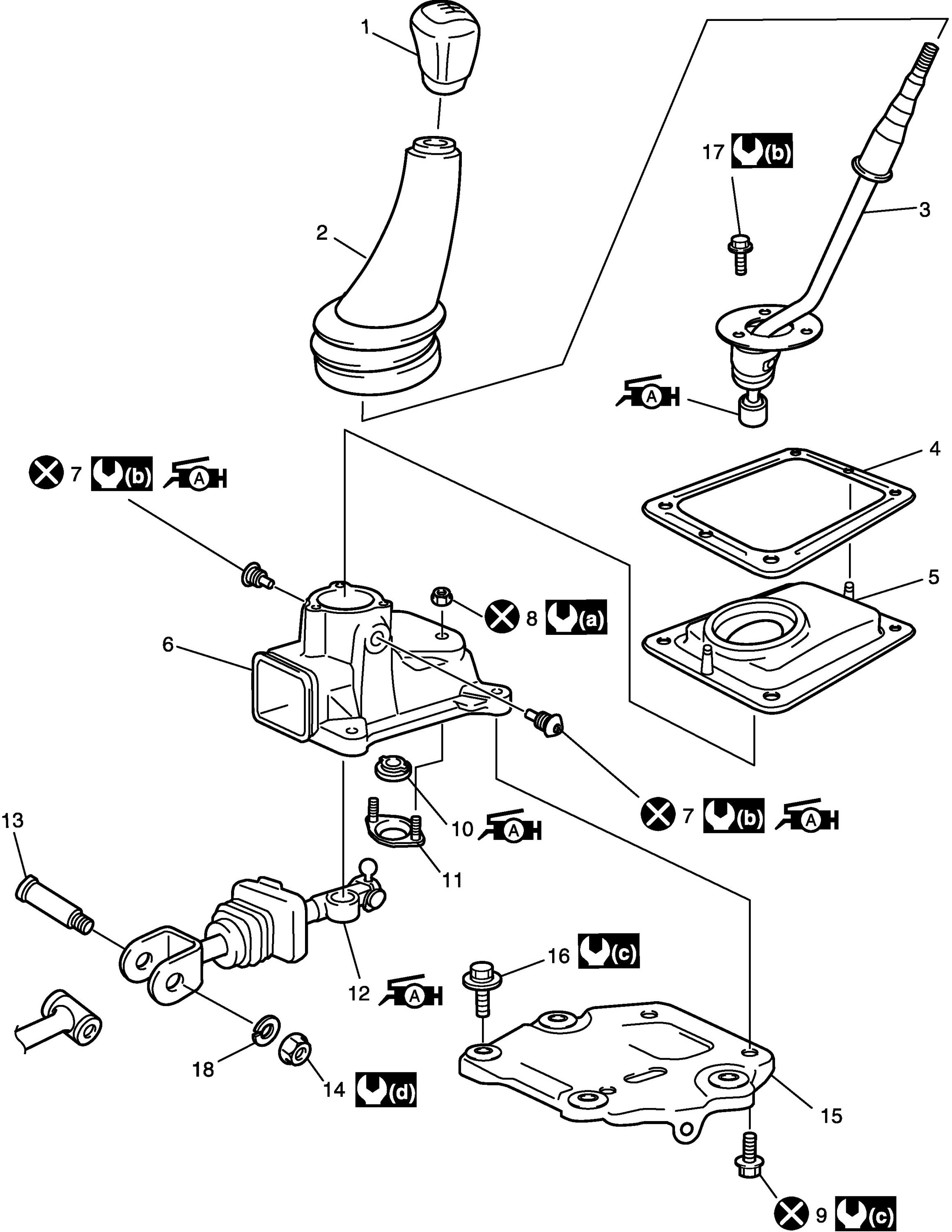

Gear Shift Control Lever Rear Case Assembly Components (part 2):
