Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

Engine Coolant Temperature (ECT) Sensor Inspection




Reference: Engine Coolant Temperature (ECT) Sensor Removal and Installation

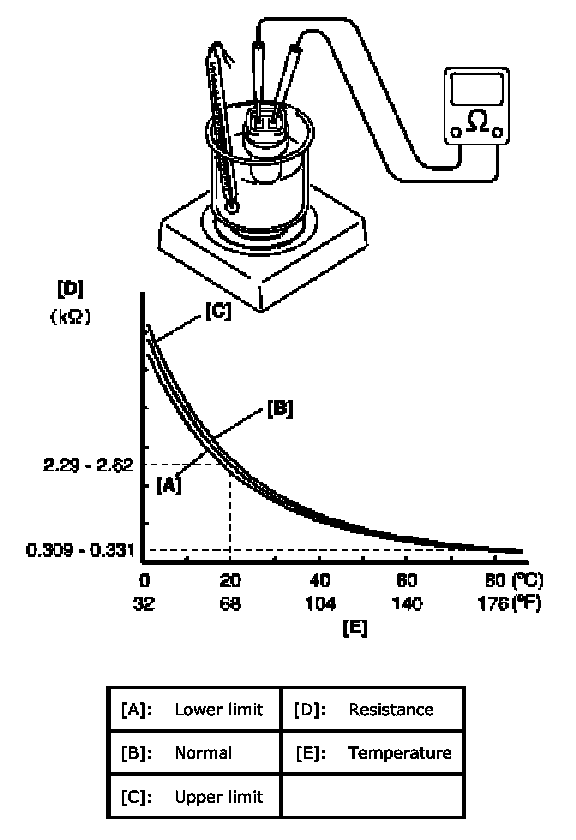

Immerse temperature sensing part of ECT sensor in water and measure resistance between sensor terminals while heating water gradually. If measured resistance doesn't show characteristics as shown in the figure, replace ECT sensor.
