Engine Specifications

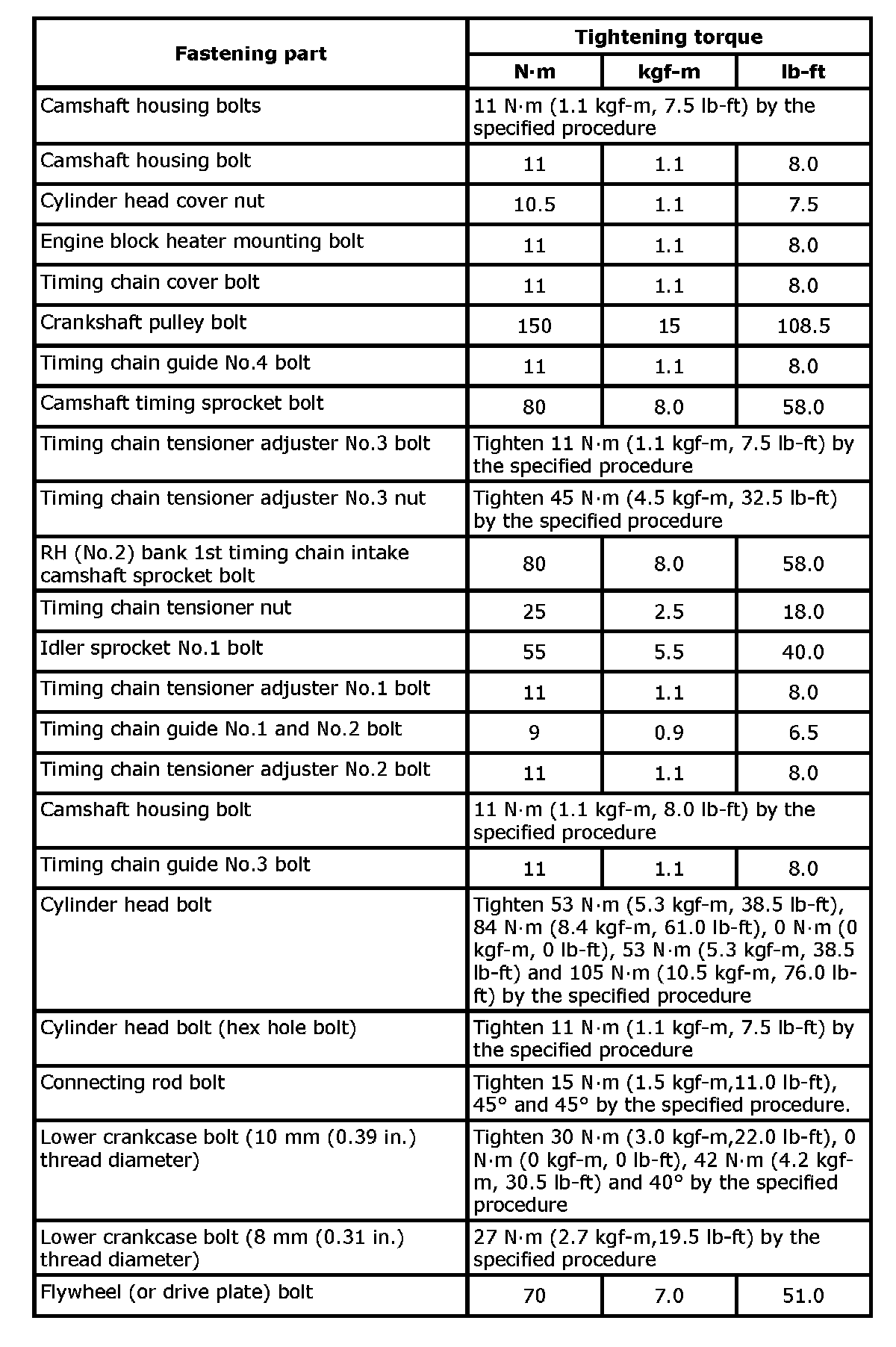

Tightening Torque Specifications





NOTE:
The specified tightening torque is also described in the following.
Air Intake System Components
Engine Mounting Components
Timing Chain Cover Components
LH (No.1) Bank 2nd Timing Chain and Chain Tensioner Components
1st Timing Chain and Chain Tensioner Components
RH (No.2) Bank 2nd Timing Chain and Chain Tensioner Components
Camshafts, Tappets and Shims Components
Valves and Cylinder Heads Components
Pistons, Piston Rings, Connecting Rods and Cylinders Components
Main Bearings, Crankshaft and Cylinder Block Components
