Control Module/Receiver Removal and Installation: Installation

  1. Install the control module/receiver on its mounting bracket.
  2. Connect the control module/receiver electrical connector.
  3. Install the floor console. Refer to FLOOR CONSOLE REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.

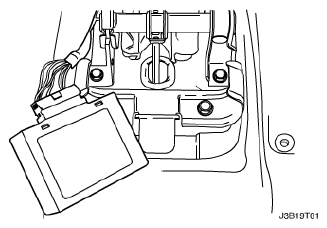

    Fig 1: Identifying Control Module/Receiver
    G04718267Courtesy of SUZUKI OF AMERICA CORP.
