DTC P0404: Exhaust Gas Recirculation (EGR) Open Position Performance: Notes

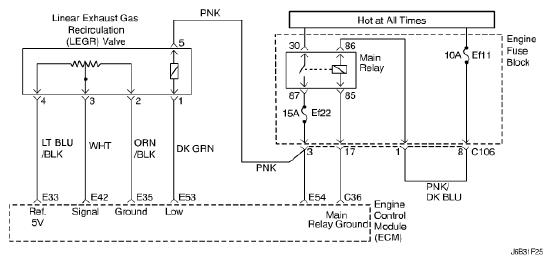

Fig 1: Exhaust Gas Recirculation Valve - Circuit Diagram
G04817313Courtesy of SUZUKI OF AMERICA CORP.
