Engine - Diagnostic Introduction
>>
Component Location
>>
Component Location
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Component Location

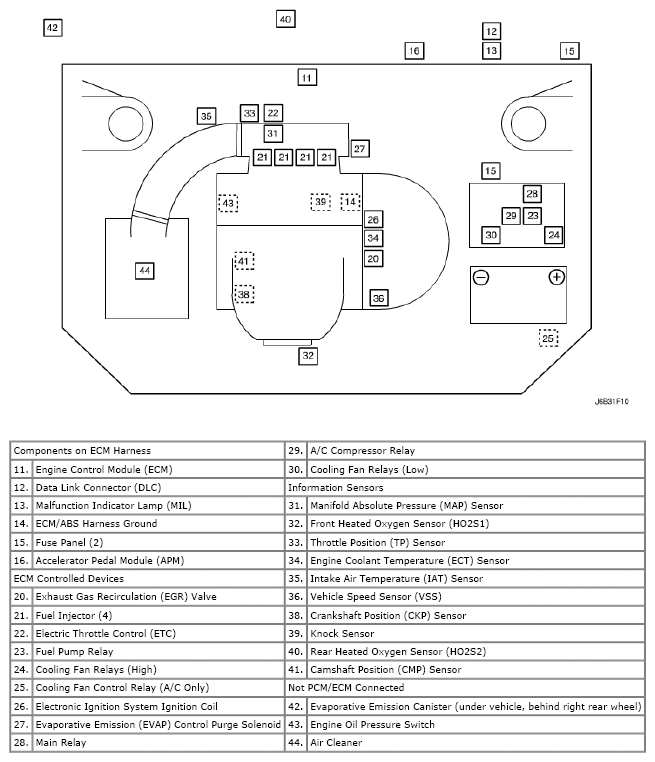

Fig 1: Identifying Engine System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
