ECM Wiring Diagram (For HATCHBACK Model) - 4/7

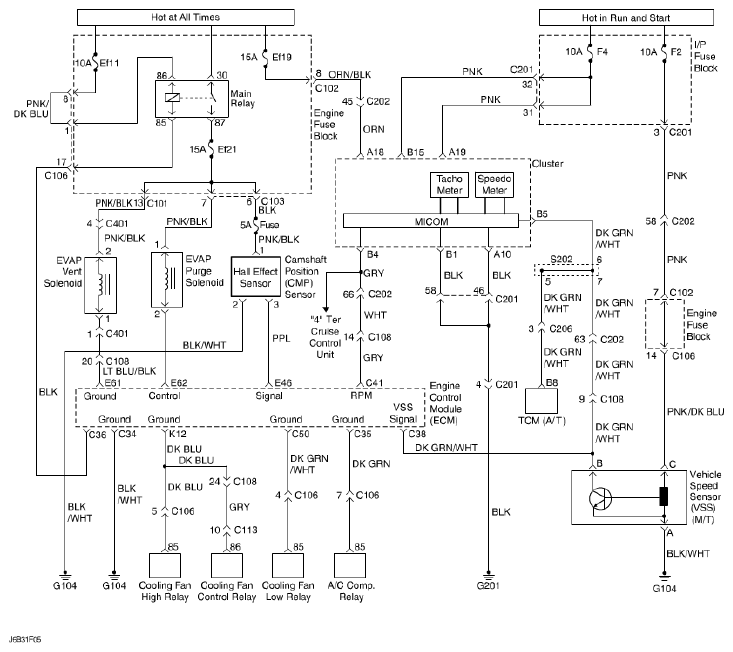

Fig 1: ECM Wiring Diagram (For HATCHBACK Model) - 4/7
G04817233Courtesy of SUZUKI OF AMERICA CORP.
