DTC U1144 (No. 1144): Lost Communication With Keyless Start Control Module: Wiring Diagram

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

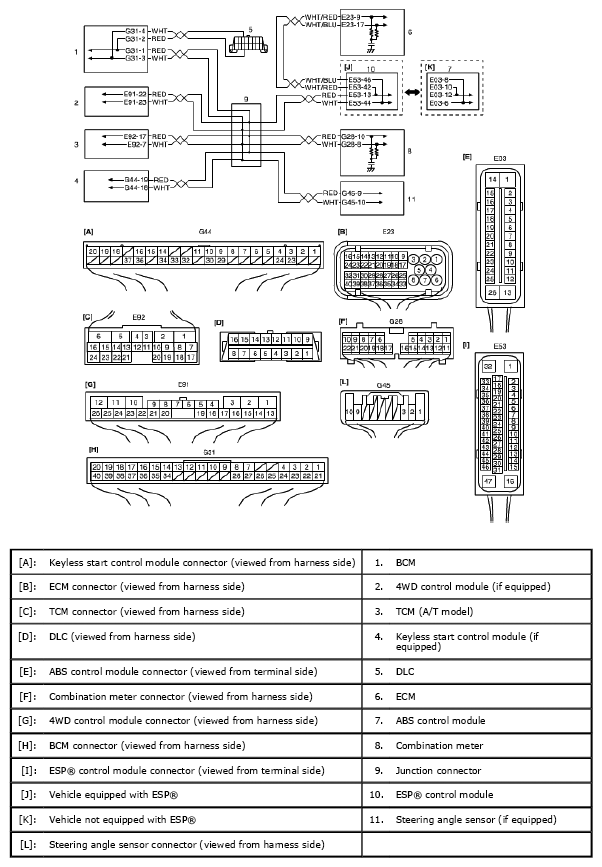

Fig 1: Lost Communication With Keyless Start Control Module - Wiring Diagram
G04810021Courtesy of SUZUKI OF AMERICA CORP.
