Keyless Start Control Module Power and Ground Circuit Check

Keyless Start Control Module Power and Ground Circuit Check

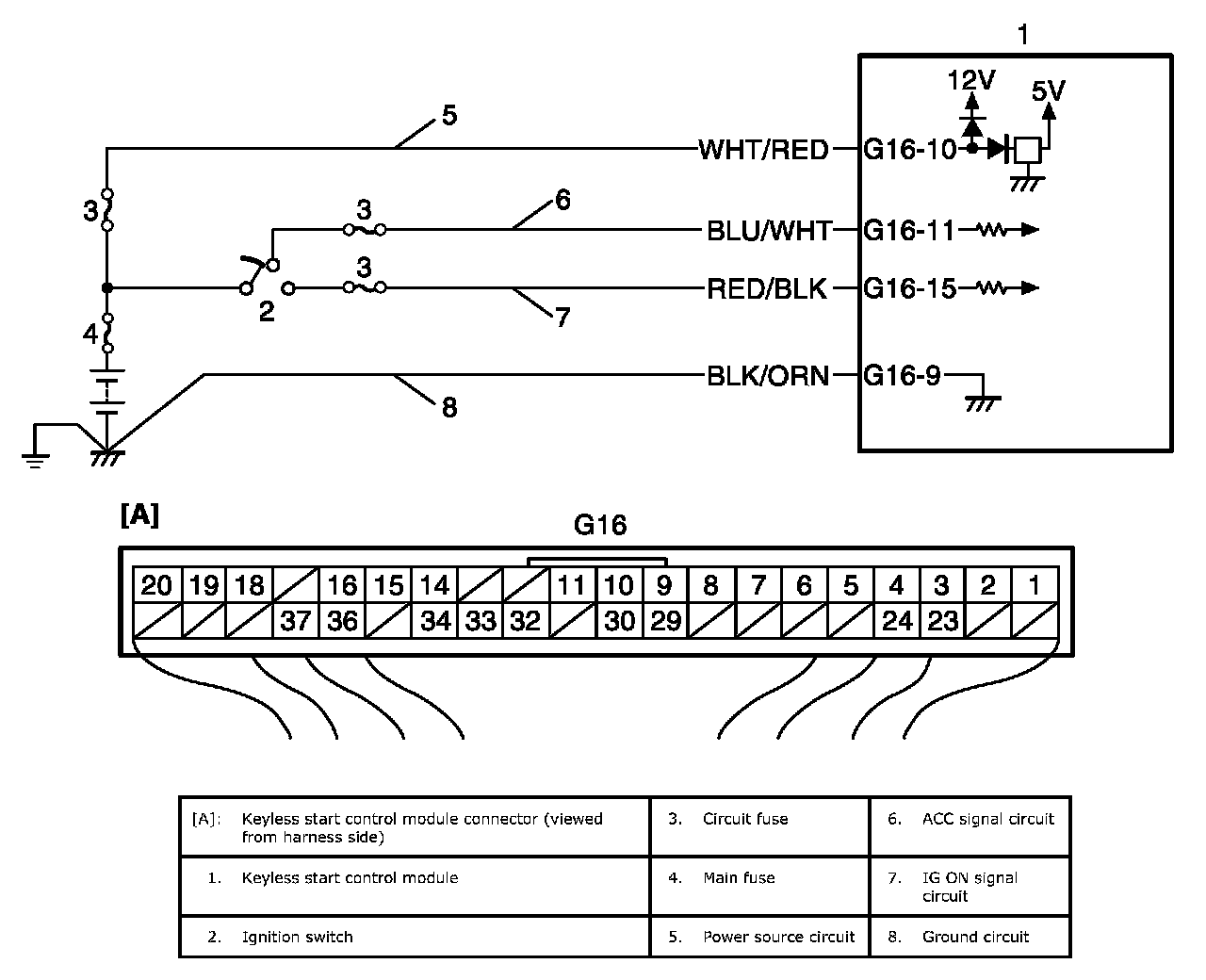

Wiring Diagram

Wiring Diagram:

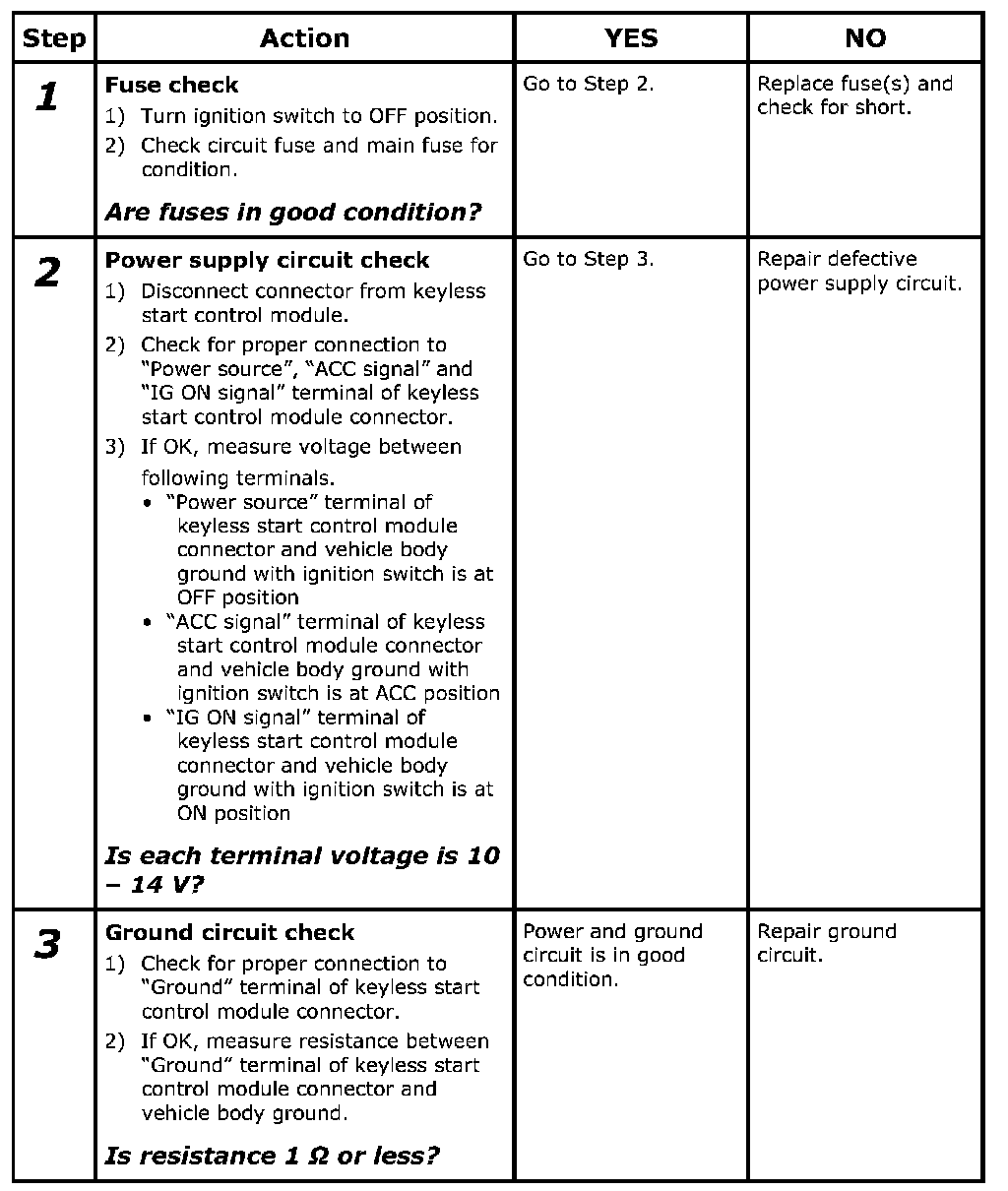

Troubleshooting

Step 1-3:
