Transmission Position Sensor/Switch: Testing and Inspection

"3" Position Switch Inspection
1. Remove console box.

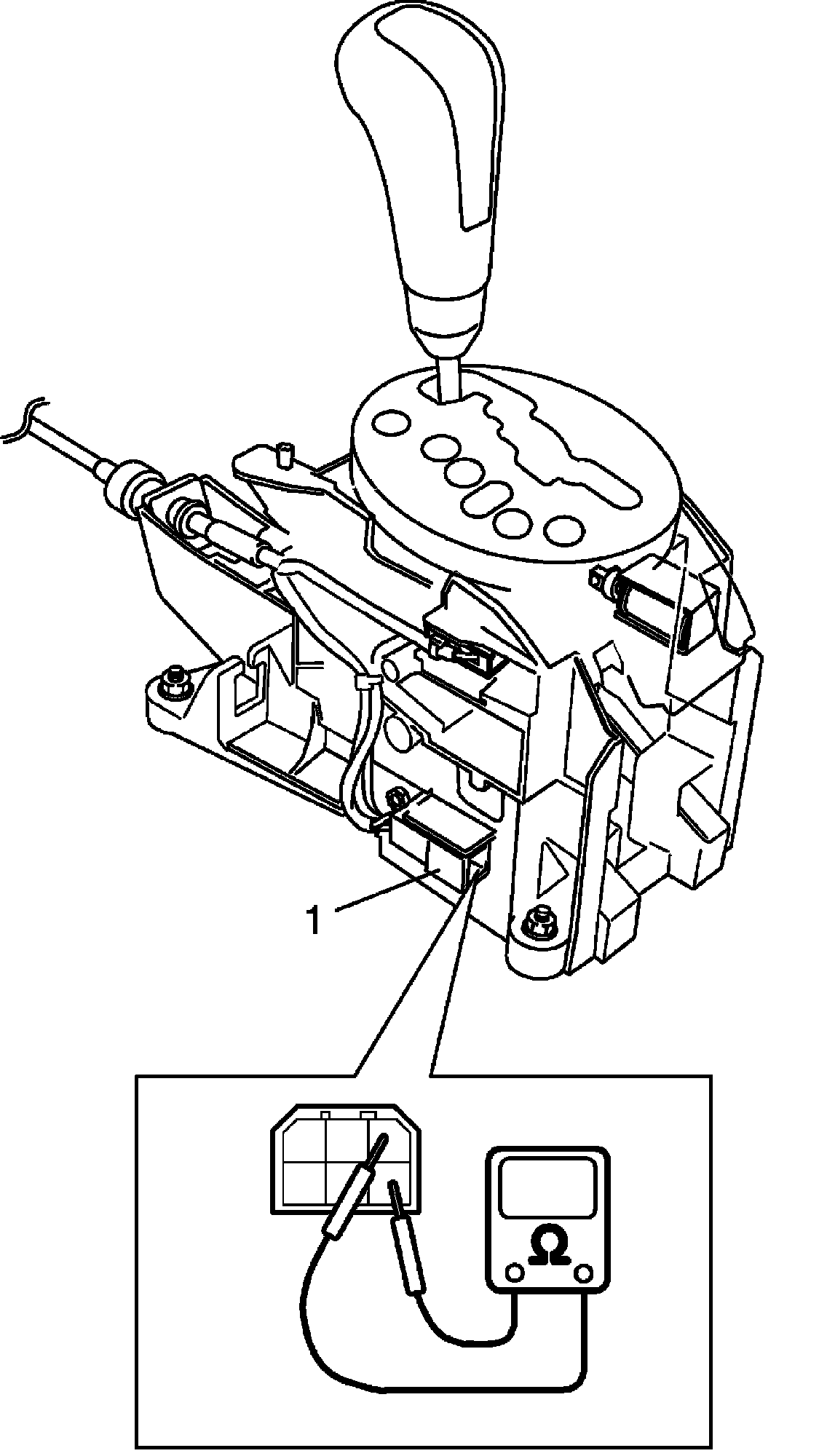

2. Disconnect "3" position switch connector (1).
3. Check continuity between "3" position switch terminals.
If check result is not as satisfied, replace.
"3" position switch specification
Shift selector lever to "3" or "2" range: Continuity
Shift other above range: No continuity
