Windshield Antenna Module Removal and Installation (For Hatchback Model): Removal
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the A-pillar trim panel. Refer to "A-PILLAR TRIM PANEL REMOVAL AND INSTALLATION :".
- Remove the sun visors with vanity mirror. Refer to "SUN VISORS WITH VANITY MIRROR REMOVAL AND INSTALLATION :".
- Remove the formed headliner. Refer to "FORMED HEADLINER REMOVAL AND INSTALLATION :".
- Disconnect the electrical connector.

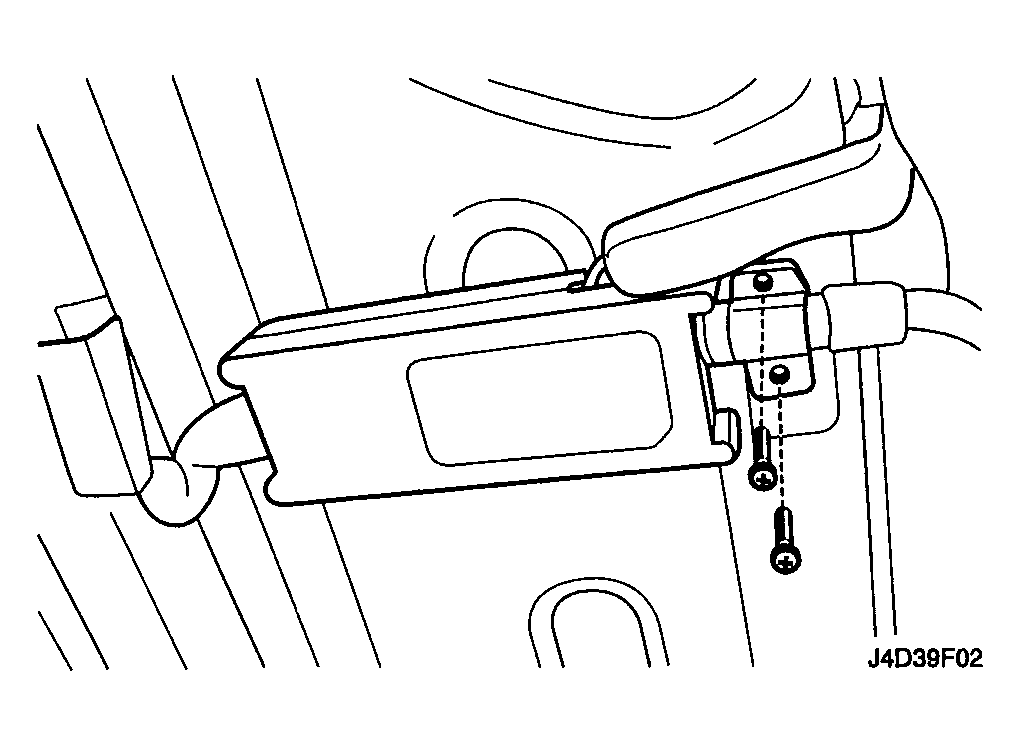

- Remove the screws and the windshield antenna module.
