Speed Sensitive Power Steering System Diagnosis: Notes

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

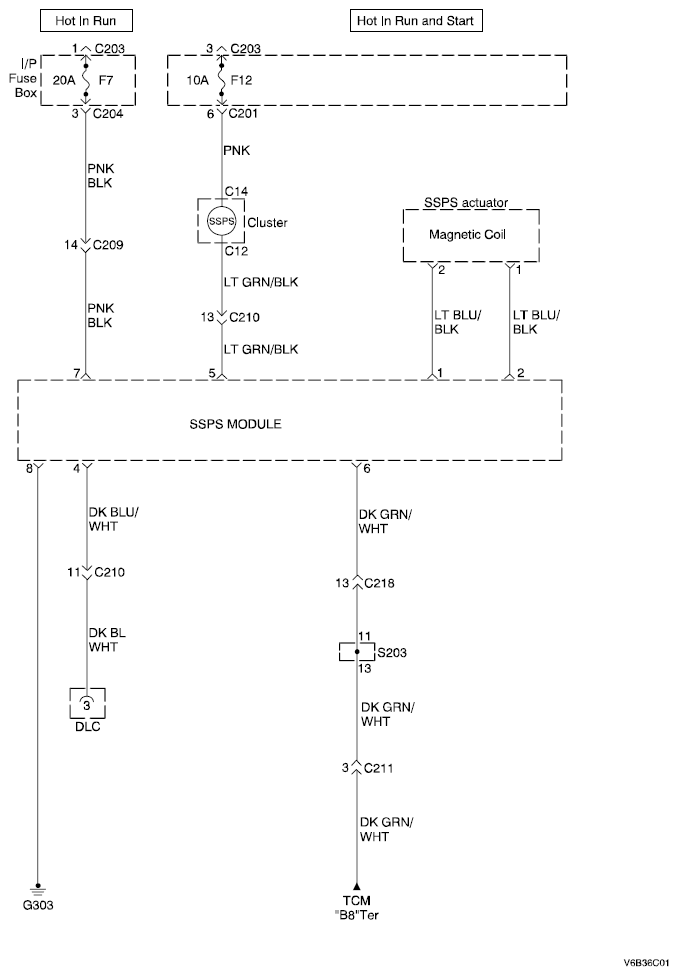

Fig 1: Speed Sensitive Power Steering System Circuit Diagram
G04719901Courtesy of SUZUKI OF AMERICA CORP.
