Intelligent Switching Unit (ISU) Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ISU with the nuts.
  2. Connect the electrical connectors.

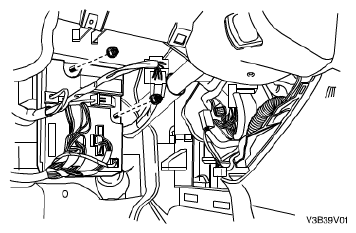

    Fig 1: Identifying Intelligent Switching Unit With Nuts
    G04720279Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the knee bolster. Refer to DRIVER'S SIDE KNEE BOLSTER INSTALLATION .
  4. Install the instrument panel under cover, Refer to INSTRUMENT PANEL INSTALLATION .
  5. Connect the negative battery connector.

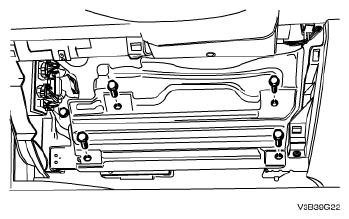

    Fig 2: Identifying Driver Side Knee Bolster & Bolts
    G04720591Courtesy of SUZUKI OF AMERICA CORP.
