Manual Control A/C Diagram (2 of 2)

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

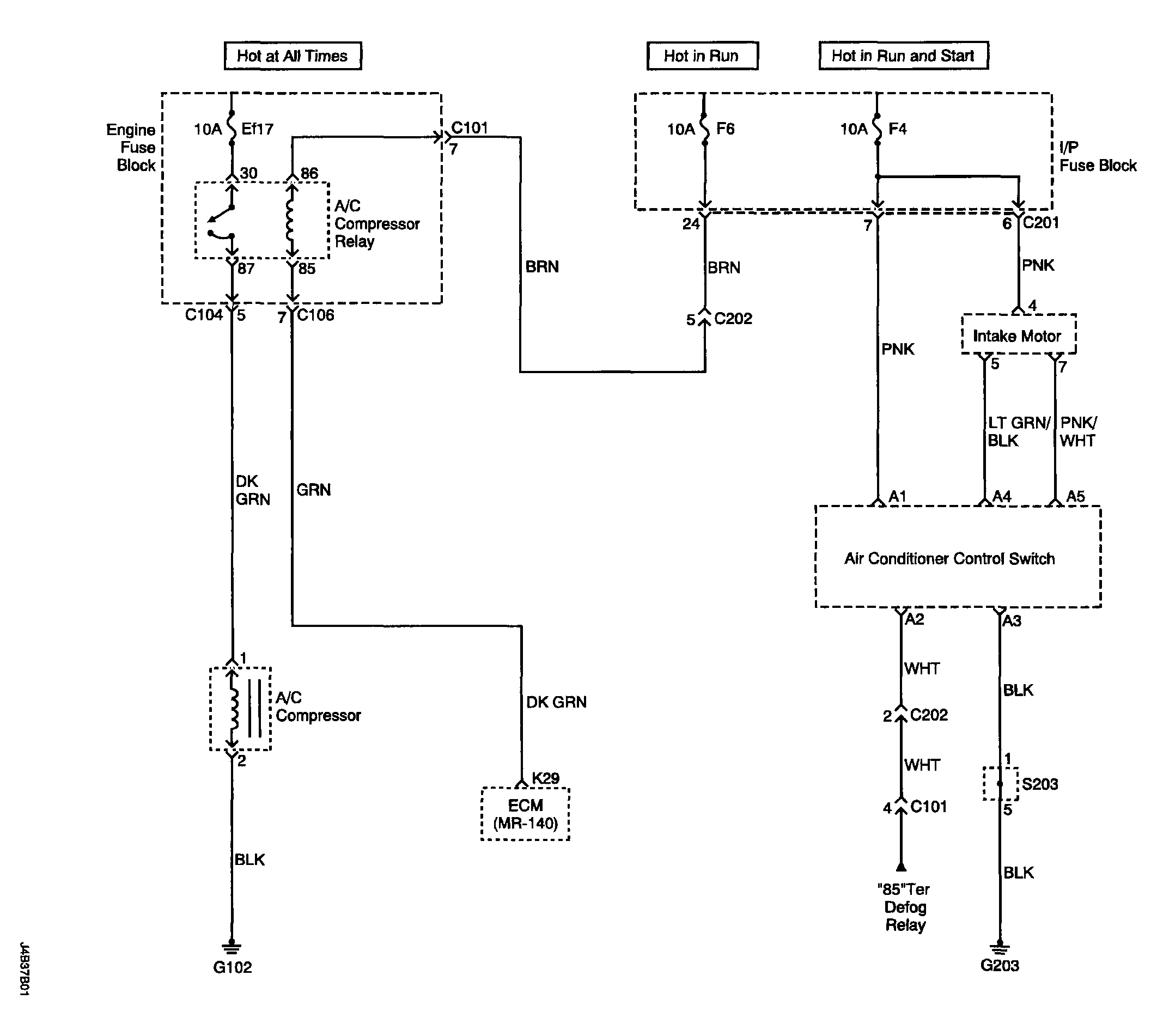

Fig 1: Manual Control A/C System - Wiring Diagram (2 Of 2)
G04104098Courtesy of SUZUKI OF AMERICA CORP.
