DTC No. 11: Communication Error With Steering Lock Unit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

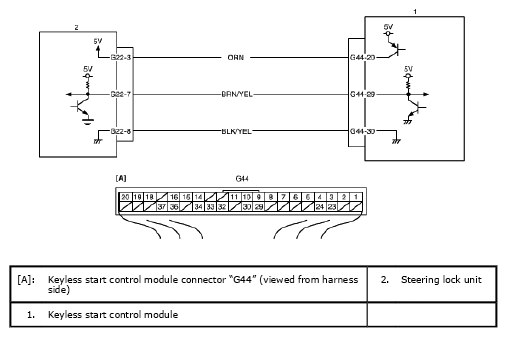

Fig 1: Communication Error With Steering Lock Unit - Wiring Diagram
G04810078Courtesy of SUZUKI OF AMERICA CORP.
