DTC U1073 (No. 1073): Control Module Communication Bus Off: Wiring Diagram

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

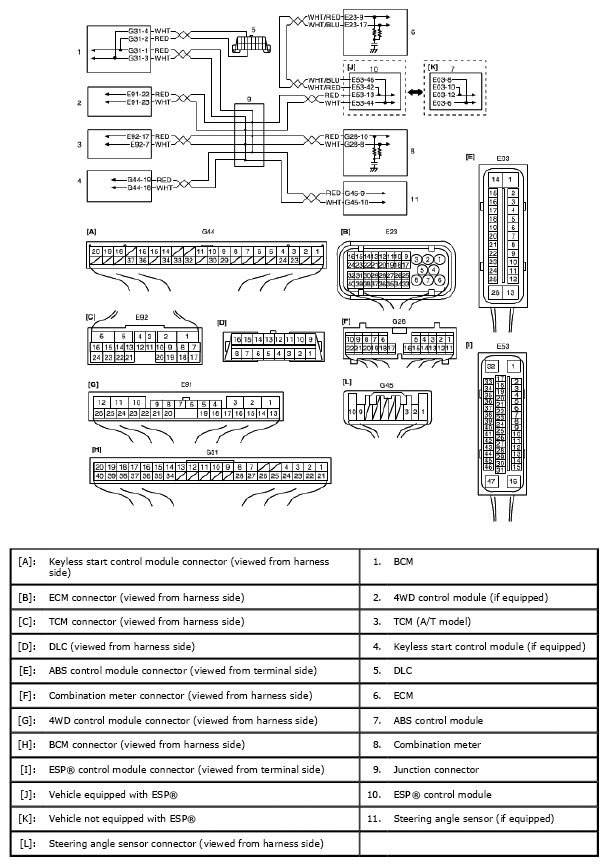

Fig 1: Control Module Communication Bus Off - Wiring Diagram
G04810018Courtesy of SUZUKI OF AMERICA CORP.
