Body Electrical Control System Wiring Circuit Diagram
WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

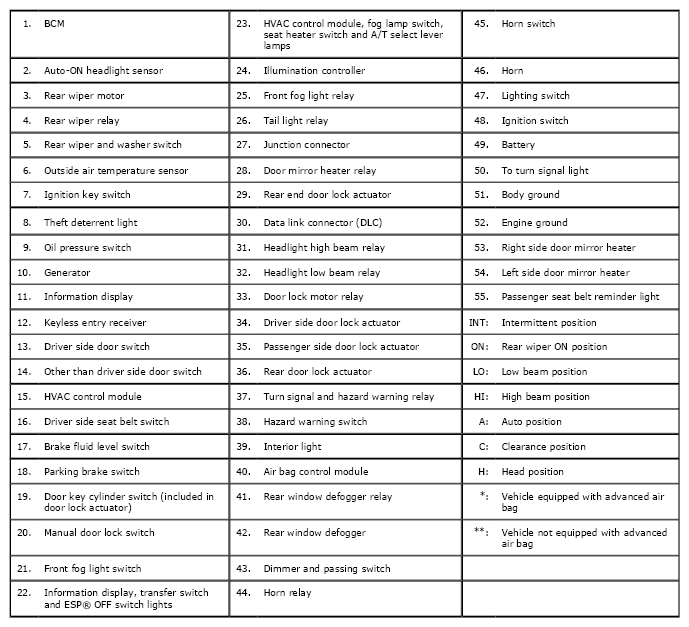

Fig 1: Body Electrical Control System Wiring Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

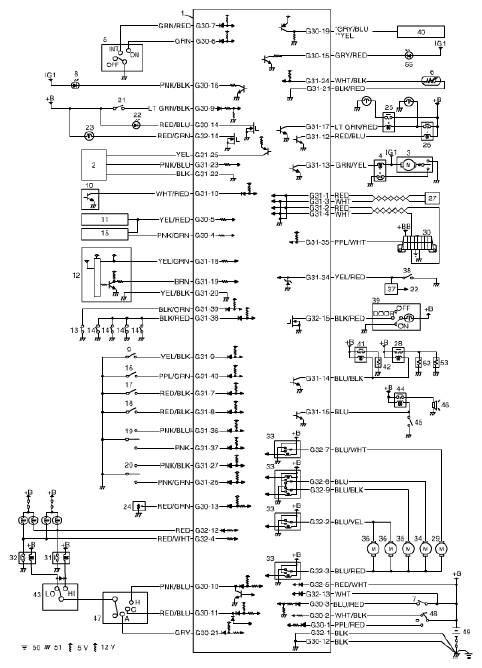

Fig 2: Body Electrical Control System Wiring Circuit Diagram (2 Of 2)
