CPP Switch (For Cruise Control) Removal And Installation: Installation

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reference: CLUTCH PEDAL POSITION (CPP) SWITCH (FOR CRUISE CONTROL) INSPECTION AND ADJUSTMENT

Install CPP switch (for cruise control) (2) to pedal bracket.
With clutch pedal (1) released, adjust switch position so that clearance between end of thread and clutch pedal bracket is within specification.
Clearance between end of thread and clutch pedal bracket

"a": 0.5 - 1.5 mm (0.02 - 0.06 in.)
Tighten lock nut (3) to specified torque.
Tightening torque

CPP switch lock nut a: 7.5 N.m (0.75 kg-m, 5.5 lb-ft)

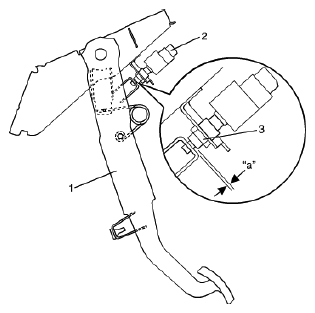

Fig 1: Identifying Clearance Between End Of Thread And Clutch Pedal Bracket
Connect connector to CPP switch (for cruise control) securely.
