Pump Assembly Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The unit repair of the power steering pump in this vehicle is not serviceable.
A faulty pump must be replaced with a new one.

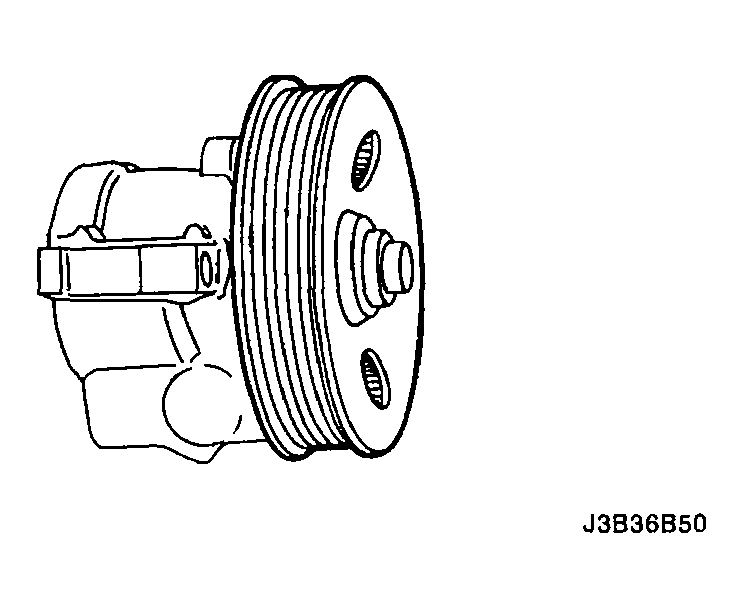

Fig 1: Identifying Power Steering Pump
G04104047Courtesy of SUZUKI OF AMERICA CORP.
