Speed Sensitive Power Steering Control Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable.
Remove the glove box. Refer to "GLOVE BOX REMOVAL AND INSTALLATION :".
Slide the speed sensitive power steering (SSPS) control module off from the control module bracket.
Disconnect the electrical connector from the SSPS control module.

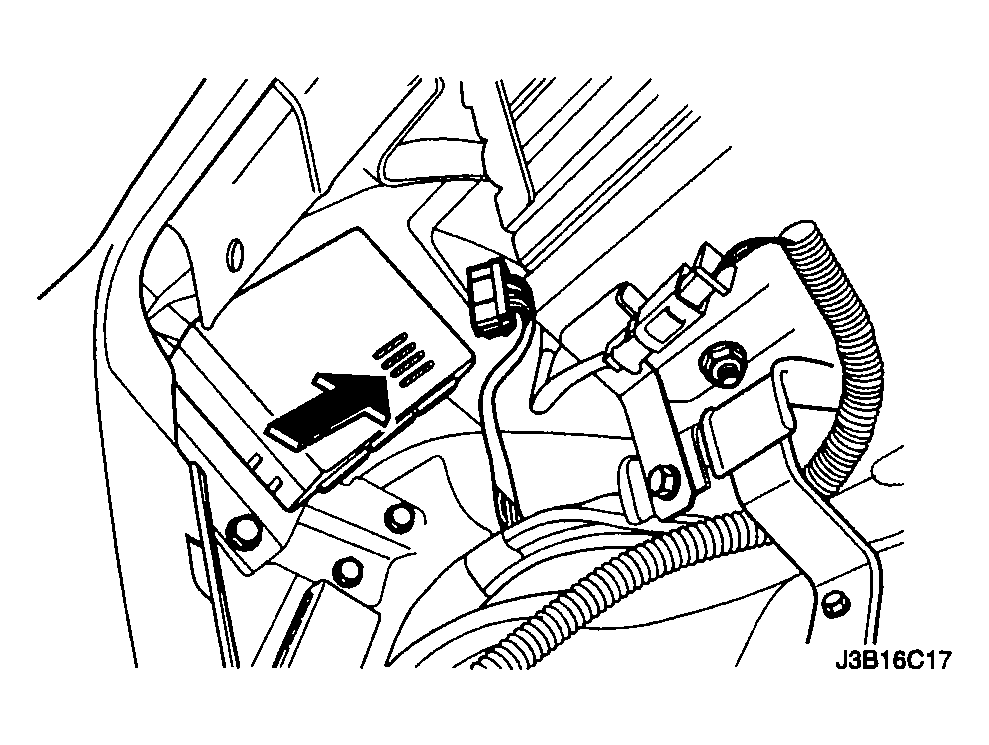

Fig 1: Disconnecting Electrical Connector From SSPS Control Module
Courtesy of SUZUKI OF AMERICA CORP.
