Trunk/Tail Gate Open Switch, Trunk Latch Switch and Trunk Room Lamps Circuit Diagram (For NOTCHBACK Model)

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

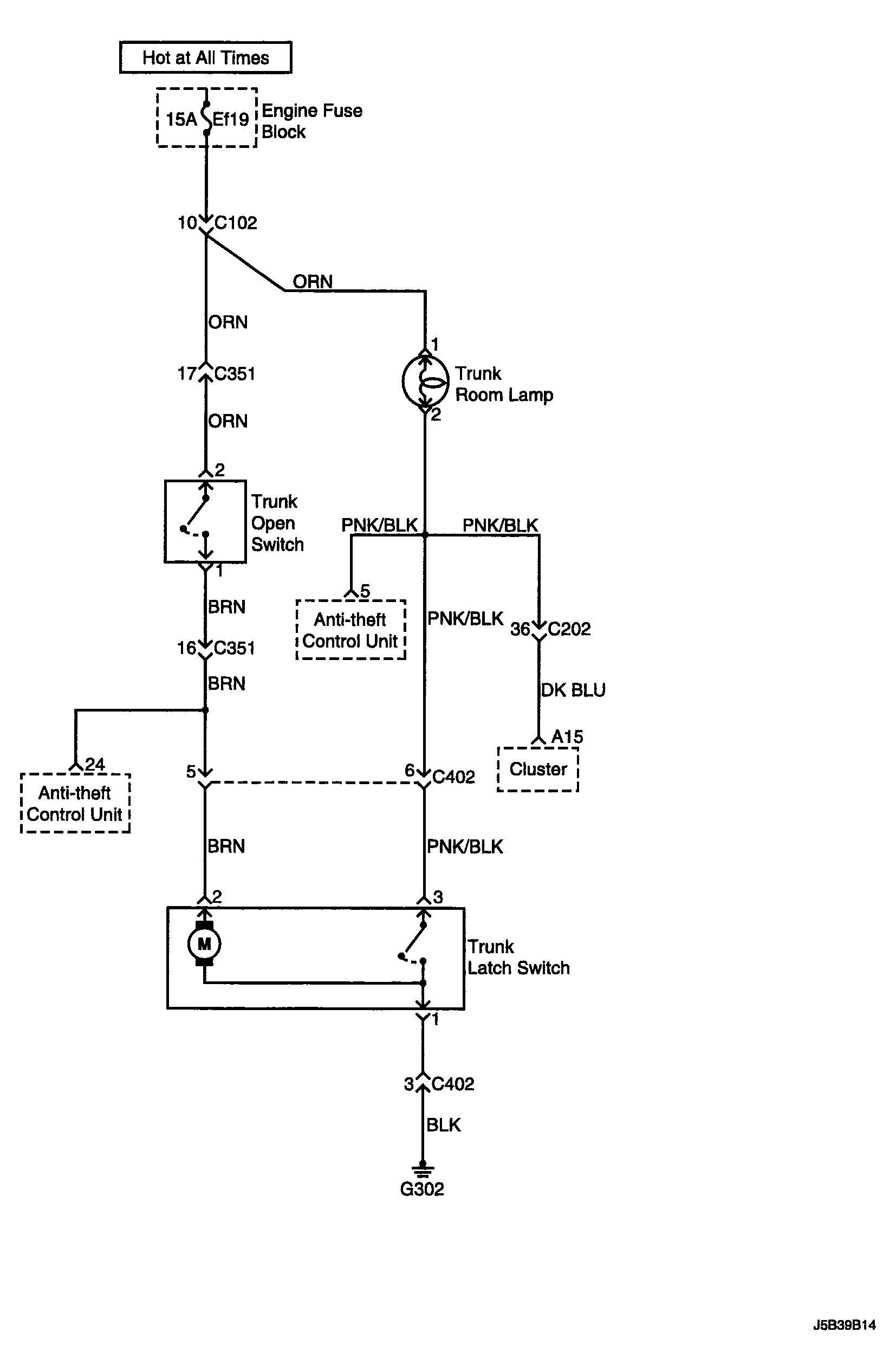

Fig 1: Trunk/Tail Gate Open Switch, Trunk Latch Switch And Trunk Room Lamps - Circuit Diagram (For NOTCHBACK Model)
G04104335Courtesy of SUZUKI OF AMERICA CORP.
