Daytime Running Lamp Module Removal and Installation: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connector.

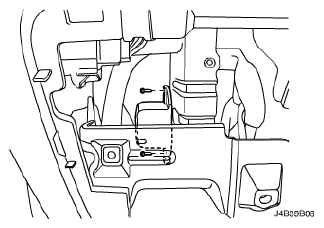

- Install the daytime running lamp module with the bolts.
Tighten:
Tighten the daytime running lamp module bolts to 2 N.m (18 lb-in).
- Install the instrument panel under cover and the knee bolster.
- Connect the negative battery cable.
