Headlamp Assembly Removal and Installation (For HATCHBACK Model): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Suzuki Reno, 2008 Suzuki Forenza, 2007 Suzuki Reno, 2007 Suzuki Forenza, and 2006 Suzuki Reno. However, it is still accessible from the selected car via links, so may be relevant.

Install the turn signal lamp.

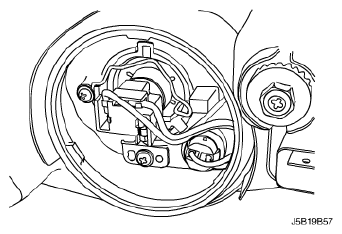

Fig 1: Identifying Turn Signal Lamp
Courtesy of SUZUKI OF AMERICA CORP.
Install the park lamp.

Fig 2: Identifying Park Lamp
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp bulb.
Install the headlamp bulb clip.
Connect the headlamp bulb connector.

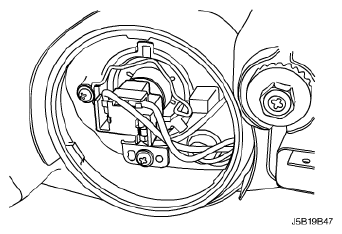

Fig 3: Identifying Headlamp Bulb Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the cap concealing the headlamp bulb.

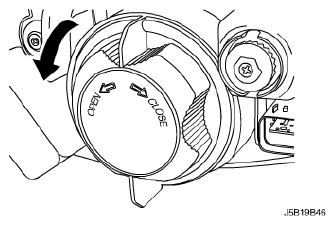

Fig 4: Identifying Headlamp Bulb Cap
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp assembly.
Connect the headlamp electrical connector.
Connect the turn signal lamp electrical connector.

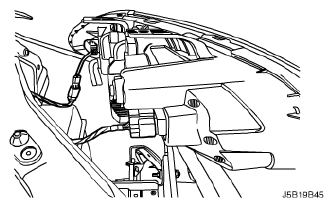

Fig 5: Identifying Headlamp & Turn Signal Lamp Electrical Connectors
Courtesy of SUZUKI OF AMERICA CORP.
Install the headlamp mounting bolts.
Tighten:

Tighten the headlamp mounting bolts to 4 N.m (35 lb-in).

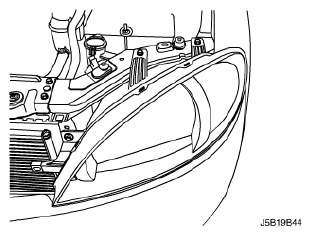

Fig 6: Identifying Headlamp Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the radiator grille.
Install the radiator grille screws.
Connect the negative battery cable.

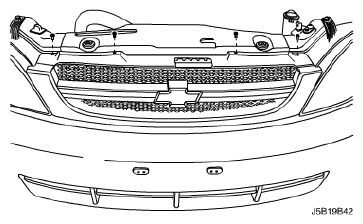

Fig 7: Identifying Radiator Grille & Screws
Courtesy of SUZUKI OF AMERICA CORP.
