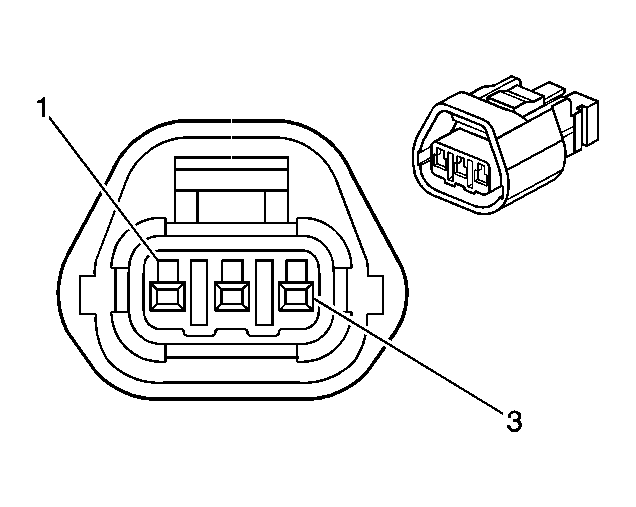

Intake Manifold Tuning (IMT) Valve Position Sensor Connector End View/Part Information/Terminal Identification

Intake Manifold Tuning (IMT) Valve Position Sensor Connector End View/Part Information/Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 1717888 3-Way F (BK)
Pin	Wire Color	Circuit No.	Function
1	L-BU	469	5-Volt Reference
2	YE	45	Intake Manifold Tuning (IMT) Valve Position Sensor
3	WH	433	Low Reference
