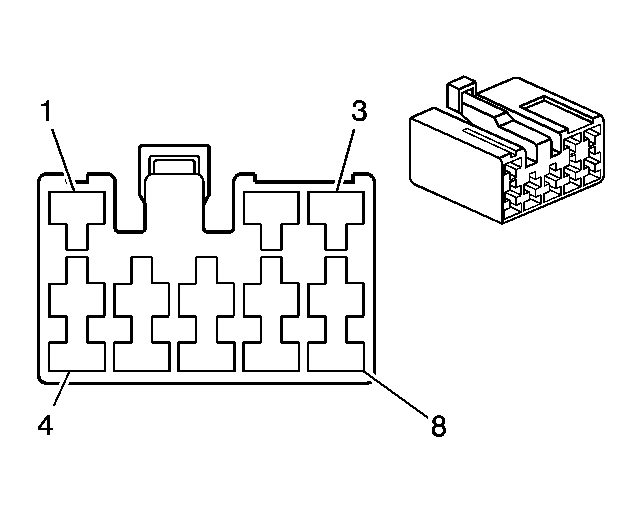

Tail Lamp Assembly Connector End View
Tail Lamp Assembly Connector End View/Part Information/Terminal Identification - Left
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG | - | Rear Fog Lamp Supply Voltage (Euro-LHD) |
| 2 | BK | - | Ground |
| BK | - | ||
| 3 | BK | - | Ground |
| 4 | L-GN | - | Backup Lamp Feed |
| 5 | L-BU | - | Turn Signal Lamp Feed - Left |
| 6 | L-BU | - | Stop Lamp Supply Voltage |
| 7 | PU | - | Park Lamp Feed |
| PU | - | ||
| 8 | PU | - | Park Lamp Feed |
Tail Lamp Assembly Connector End View/Part Information/Terminal Identification - Right
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG | - | Rear Fog Lamp Supply Voltage (Euro-RHD) |
| 2 | BK | - | Ground |
| BK | - | ||
| 3 | BK | - | Ground |
| 4 | L-GN | - | Backup Lamp Feed |
| 5 | D-BU | - | Turn Signal Lamp Feed - Right |
| 6 | L-BU | - | Stop Lamp Supply Voltage |
| 7 | PU | - | Park Lamp Feed |
| PU | - | ||
| 8 | BN/WH | - | Park Lamp Feed |
