System Specifications

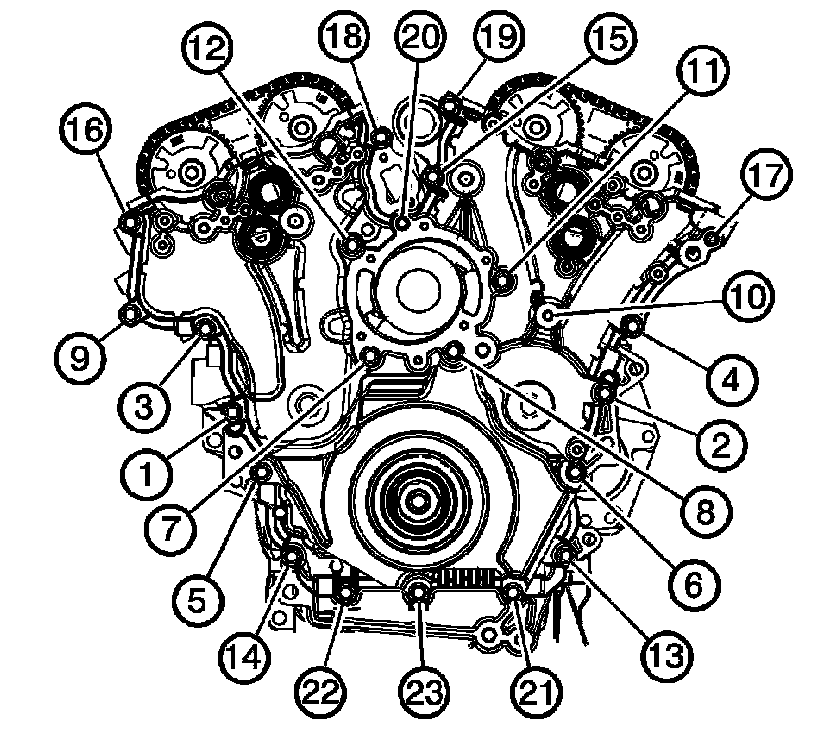

Engine Front Cover (Third Design)





Front cover bolts 23 N-m (17 ft. lbs.)

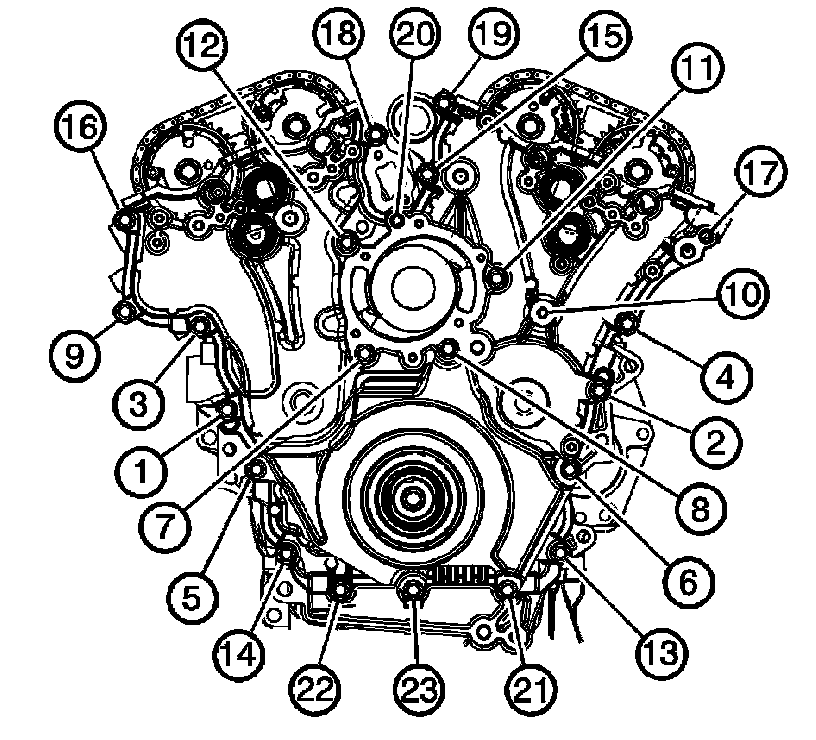

Engine Front Cover (Fourth Design)





Front cover bolts 23 N-m (17 ft. lbs.)

Primary Camshaft Drive Chain
Tensioner Bolt 23 Nm (17 ft. lbs.)

Secondary Camshaft Drive Chain
Tensioner Bolt 23 Nm (17 ft. lbs.)

Crankshaft Balancer Bolt
First Pass 100 Nm (74 ft. lbs.)
Final Pass 150 Degrees
