Window Systems Component Views

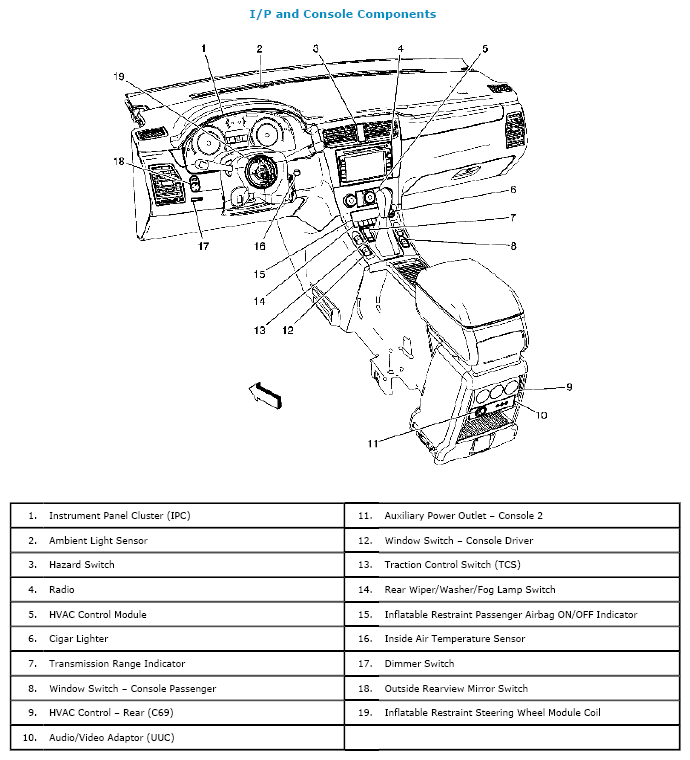

Fig 1: Identifying I/P & Console Components

Courtesy of SUZUKI OF AMERICA CORP.

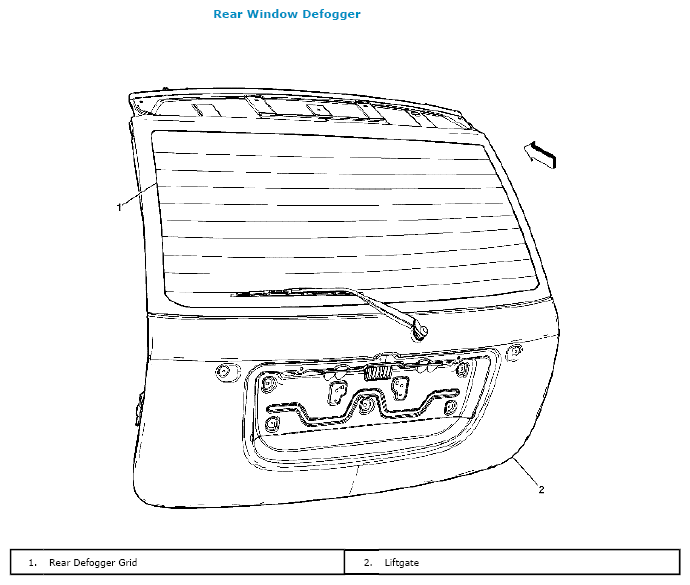

Fig 2: Identifying Rear Defogger Grid & Liftgate Components

Courtesy of SUZUKI OF AMERICA CORP.

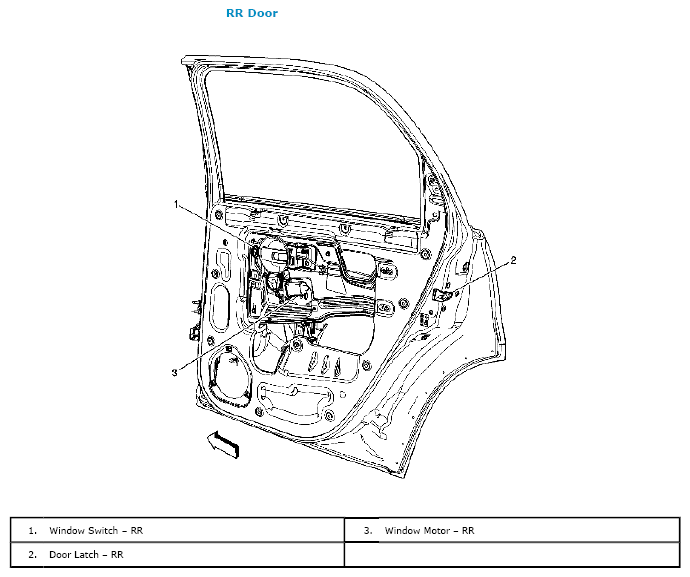

Fig 3: Identifying Window Switch, Window Motor & Door Latch (RR) Components

Courtesy of SUZUKI OF AMERICA CORP.

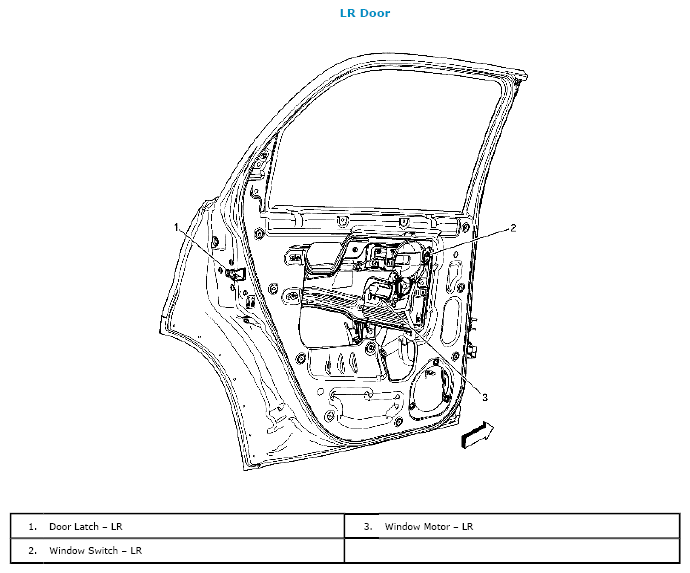

Fig 4: Identifying Window Switch, Window Motor & Door Latch (LR) Components

Courtesy of SUZUKI OF AMERICA CORP.

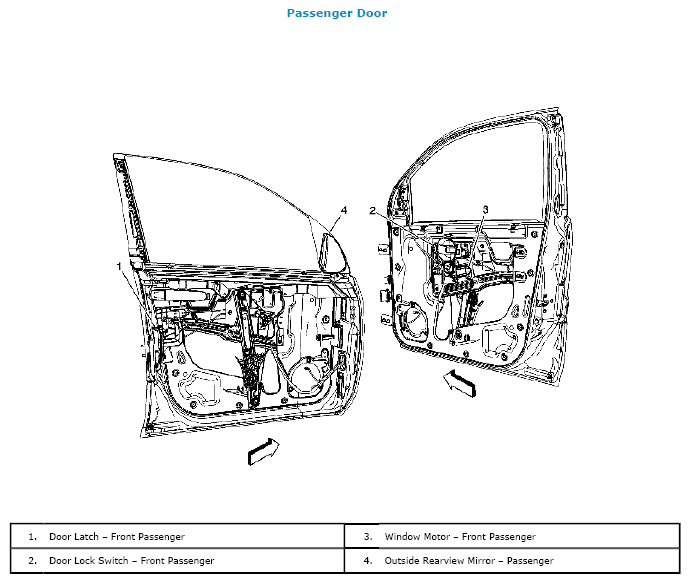

Fig 5: Identifying Door Latch, Outside Rear View Mirror & Door Lock Switch (Front Passenger) Components

Courtesy of SUZUKI OF AMERICA CORP.

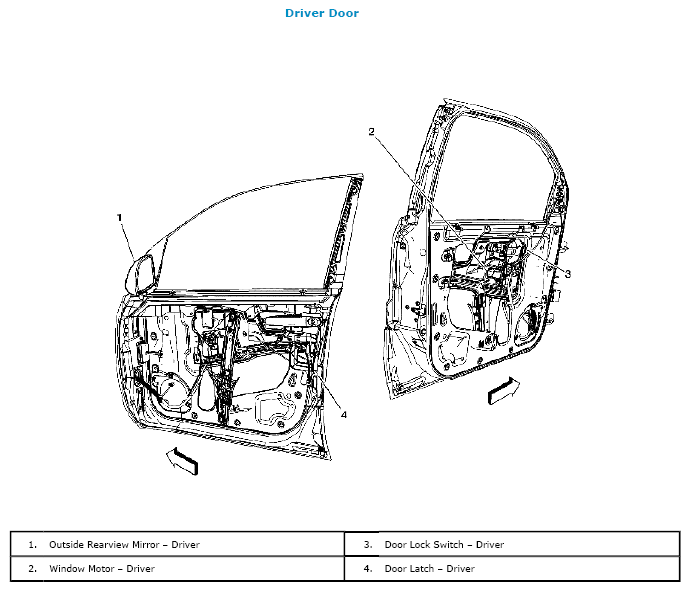

Fig 6: Identifying Door Latch, Outside Rear View Mirror & Door Lock Switch (Driver) Components

Courtesy of SUZUKI OF AMERICA CORP.
