Engine Controls Component Views

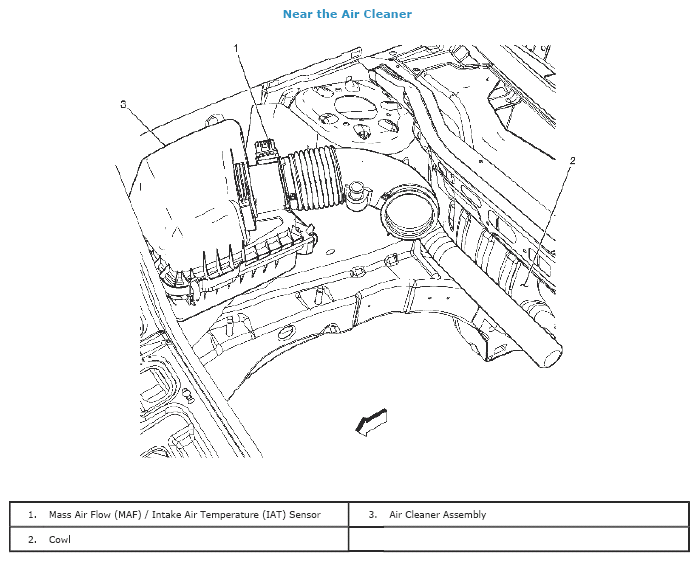

Fig 1: Identifying Air Cleaner Components

Courtesy of SUZUKI OF AMERICA CORP.

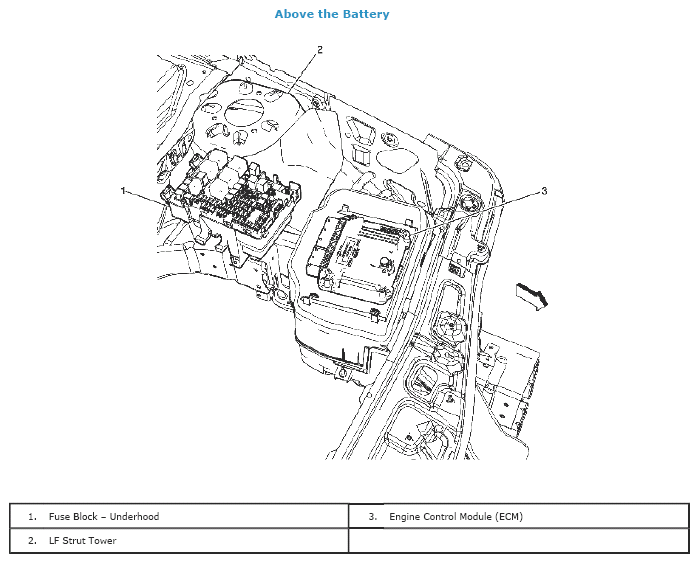

Fig 2: Identifying Battery Components

Courtesy of SUZUKI OF AMERICA CORP.

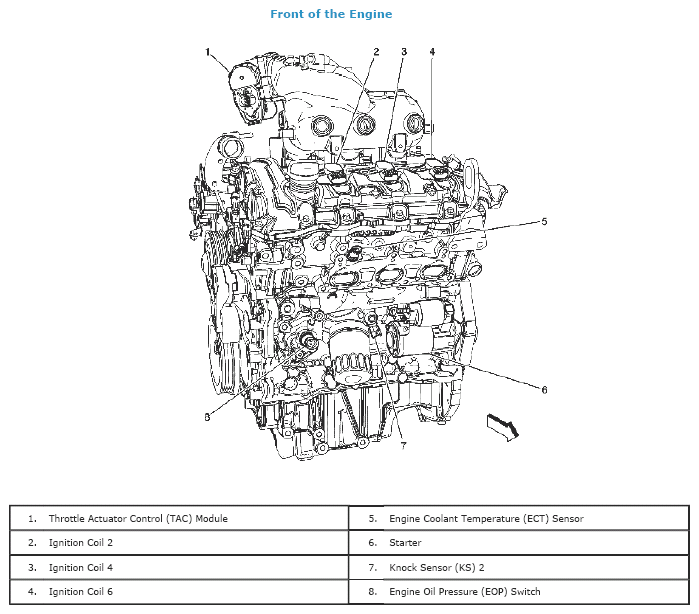

Fig 3: Identifying Front Engine Components

Courtesy of SUZUKI OF AMERICA CORP.

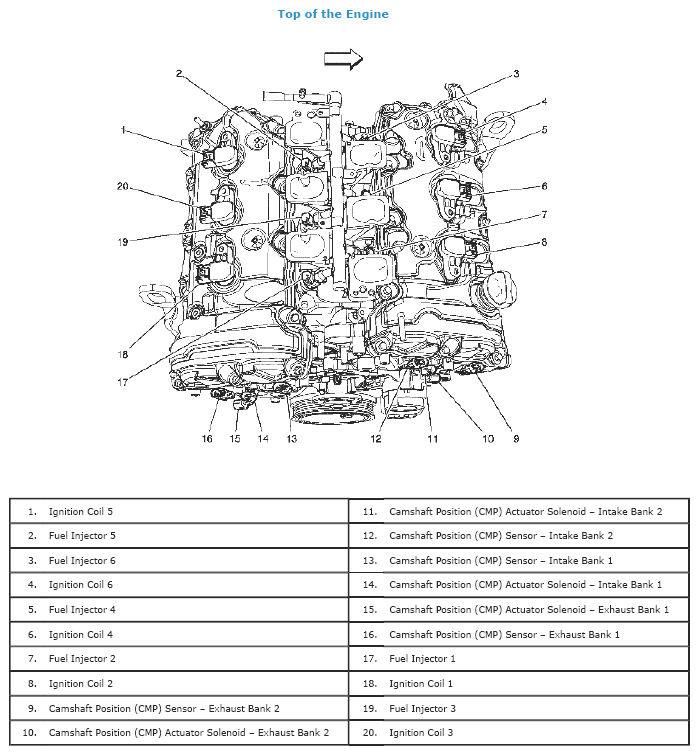

Fig 4: Identifying Top Of Engine Components

Courtesy of SUZUKI OF AMERICA CORP.

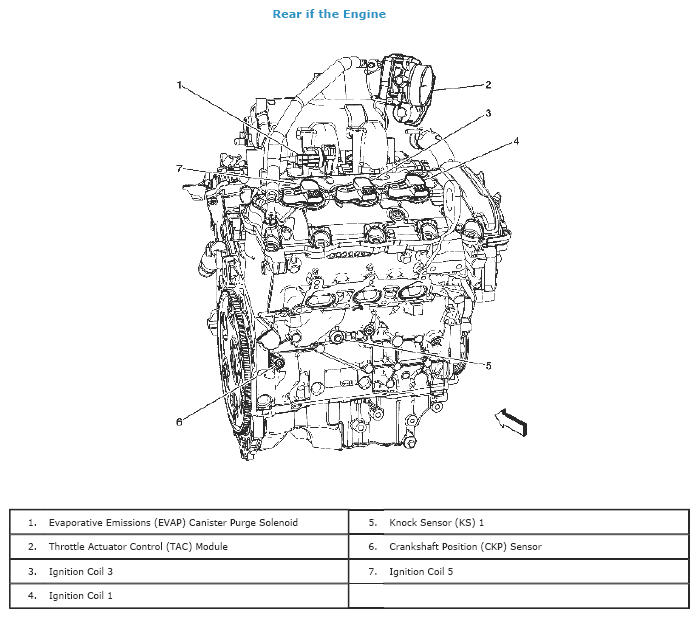

Fig 5: Identifying Rear Of Engine Components

Courtesy of SUZUKI OF AMERICA CORP.

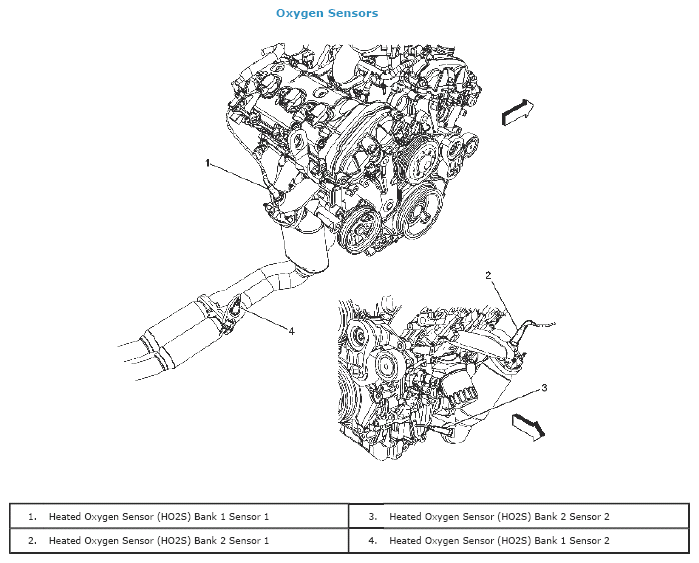

Fig 6: Identifying Oxygen Sensors Components

Courtesy of SUZUKI OF AMERICA CORP.

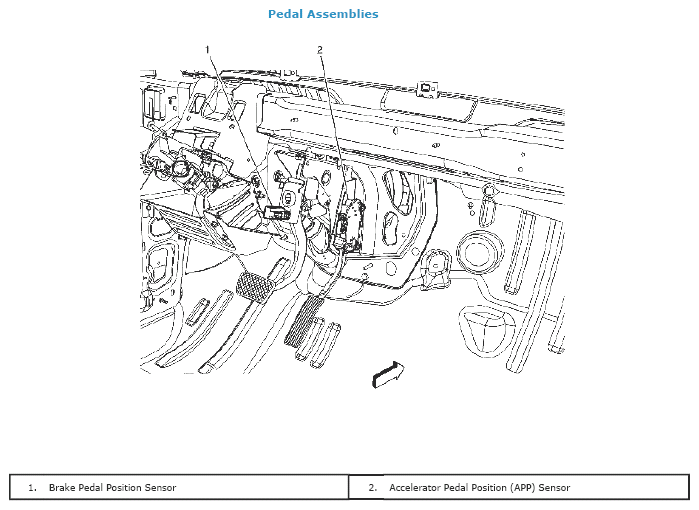

Fig 7: Identifying Pedal Assemblies Components

Courtesy of SUZUKI OF AMERICA CORP.

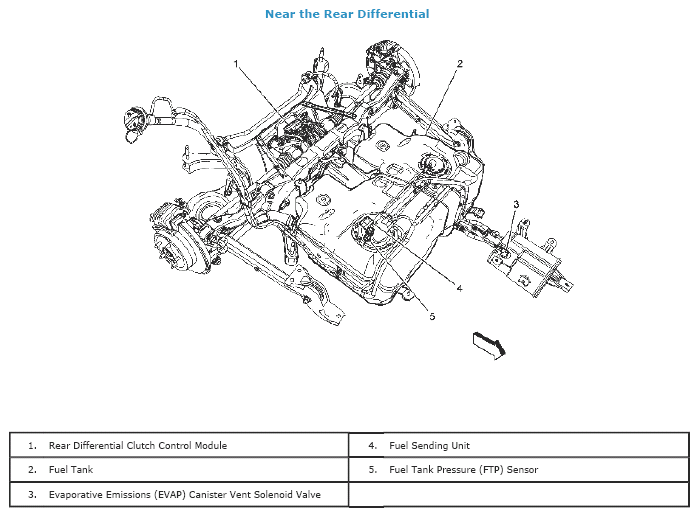

Fig 8: Identifying Near Of Rear Differential Components

Courtesy of SUZUKI OF AMERICA CORP.
