Engine Control Module: Locations

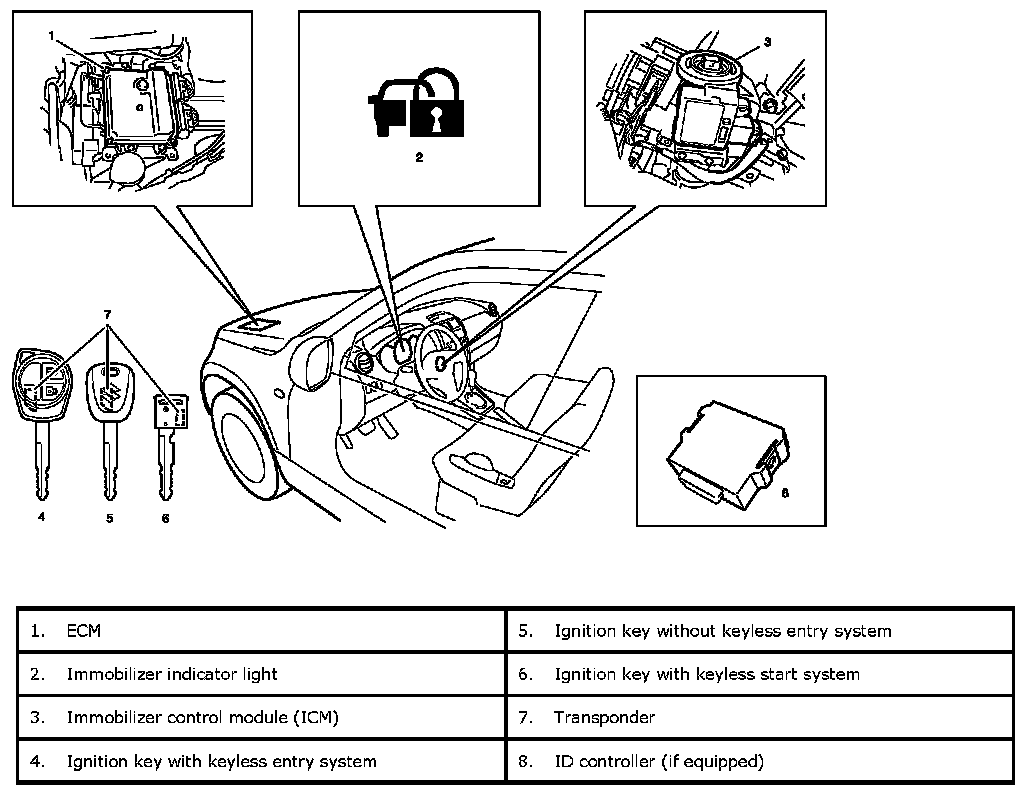

Immobilizer Control System Components Location:

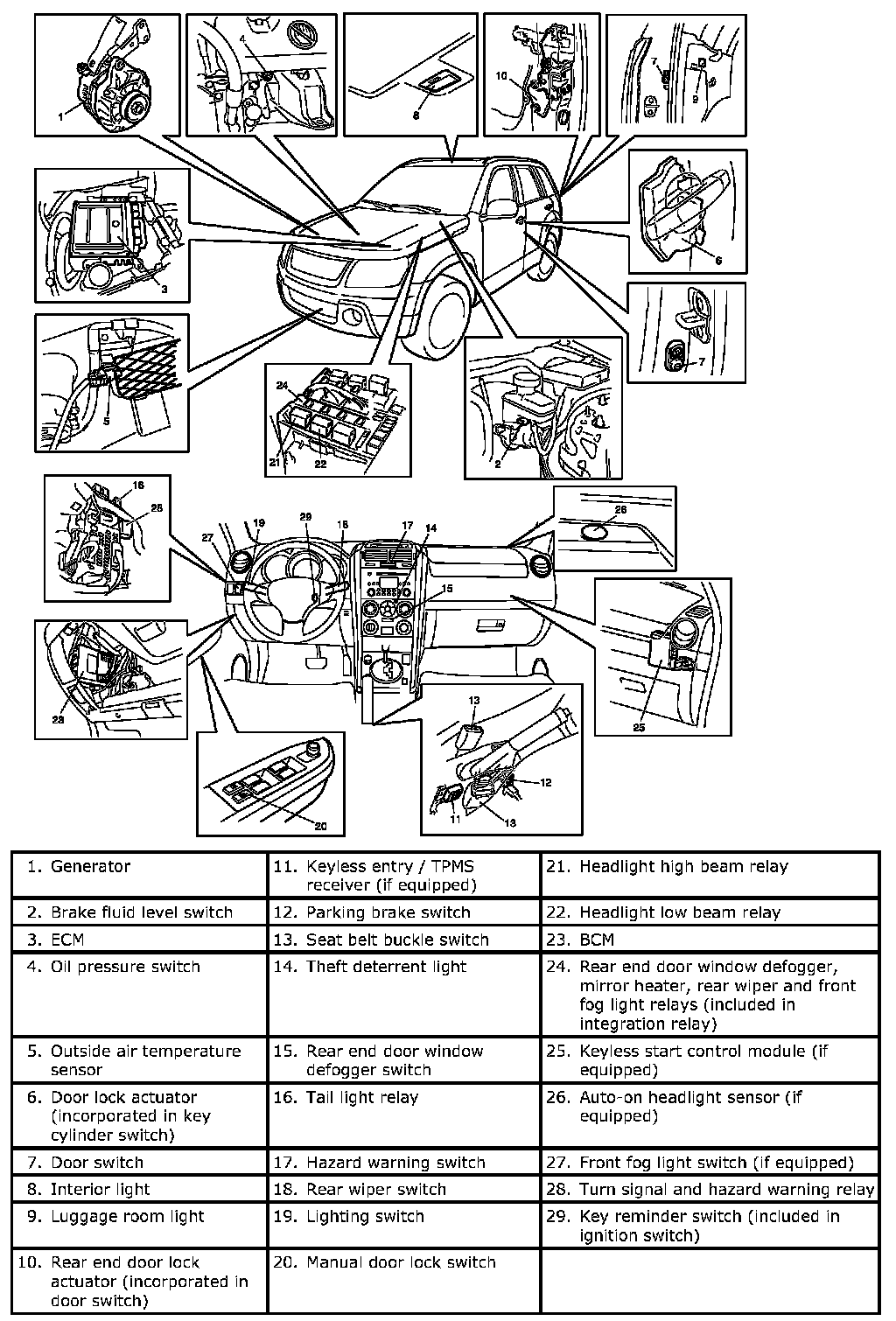

BCM And Related System Component Location:
